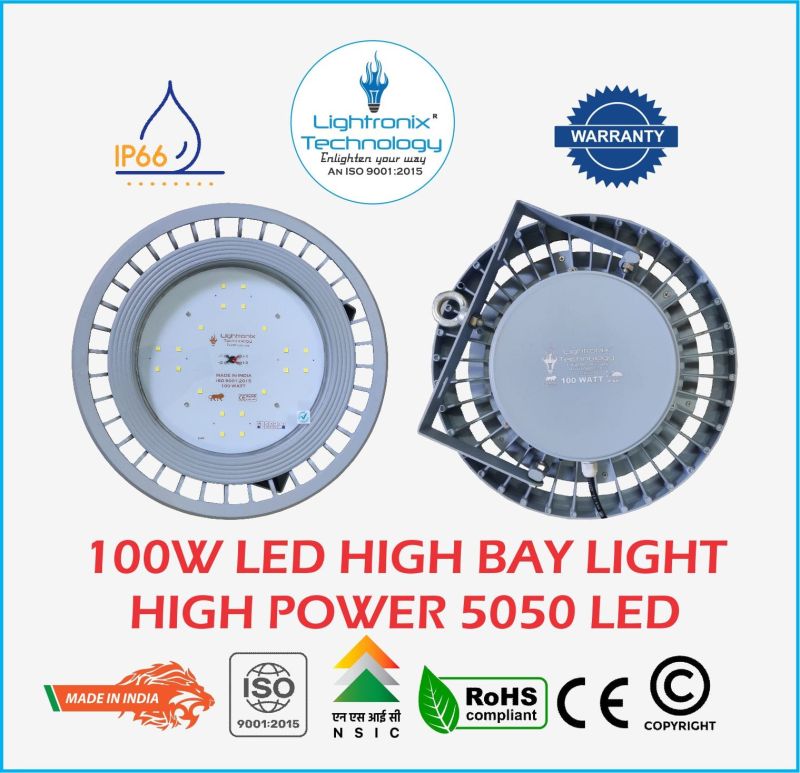

GENERAL INFORMATION

Order CodeLT-100WHBL-5050

MakeLightronix Technology

Country of OriginINDIA

Lighting Source & TypeSMD 5050 LED

Number of LED20



OPTICAL PARAMETERS

Led Beam Angle120 degree

CRI (Color Rendering Index)>80

LED Life Span>60000 Hours

ColorWhite/Warm White/Cool White (As Per Order)

Color Temperature2700-6500K(As Per Order)

Led Voltage/Current6.2V/750mA

LED MakeSeoul/Bridge lux/Cree/Nichia/Osram (As per Requirement)

Optical LensNA

Luminous Efficiency170 Lm/W

Total Lumens17000(±5%)

Optical Efficiency>93%

Thermal Efficiency>90%







ELECTRICAL PARAMETERS

Wide Input Voltage Range90-310VAC(With Auto Cutoff)

Operating Frequency50/60 HZ

Power Consumption100 Watt

Power Factor>0.95

THD<10%

Driver Surge Protection4-6KV

External Surge Protection10KV (As per Requirement)

Control GearConstant current LED Driver

Operating Temperature-40 to 75°C

Max. Case Temperature+90°C

Working Humidity20~95% RH non-condensing

Driver thermal ProtectionYes

Electrical Efficiency>90%

Supply PhaseSingle Phase Supply

Over voltage Protection440VAC Protection

Under voltage Protection90VAC

Auto cutoff VoltageLower Side<90VAC & Higher Side>310VAC









PCB INFORMATION

PCB Thickness1.6mm(±5% Tolerance)

PCB MaterialPure Aluminum-Copper

Copper Layer ThicknessStandard 0.35 Micron

Copper Conductivity>1 Watt

PCB Size230X230 mm







MECHANICAL PARAMETERS

Housing MaterialAluminum Pressure Die Casting

Housing Color TypeMetal Powder Coated

Housing ShapeRound

Total Luminaries Weight3.910 Kg

Luminaries Size Diameter - 380 mm

Height – 122 mm

Mounting DeviceBracket

Mounting Style  Ceiling/Roof/Hanging

Glass Type4mm Toughen Glass

Glass Size Diameter - 242 mm

Cable Entry OptionPG7 Cable Gland with Rubber Washer

Screw TypeStainless Steel Screw

Gasket TypeSilicone Rubber Gasket

IP RatingIP65/IP66

Impact RatingIK08/IK10

Marking TypeLaser Marking/Engraving
