Product Details
|
GENERAL INFORMATION |
|
|
Order Code |

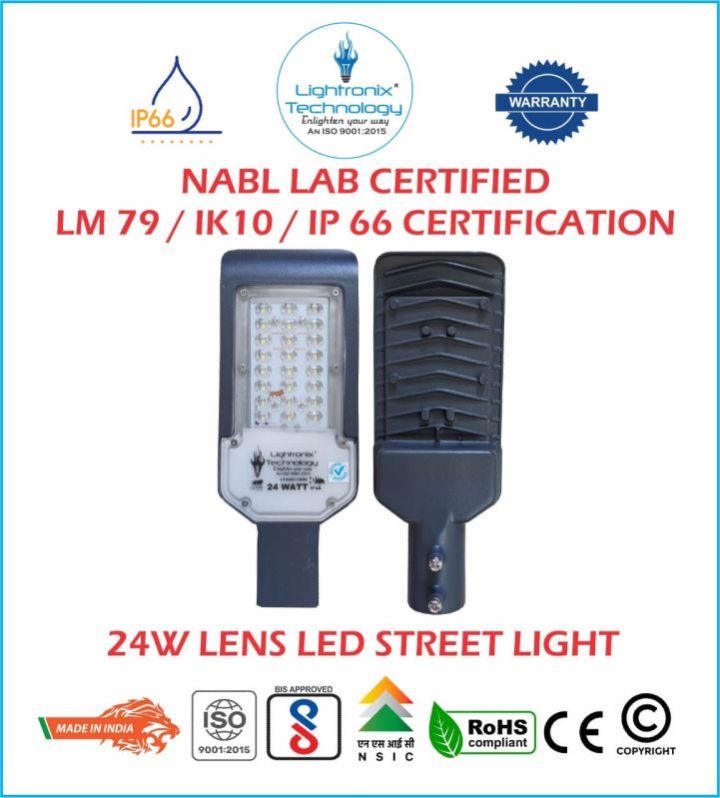

LT-24WSL (LENS MODEL) |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 3030 LED |
|
Number of LED |
24 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
90 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
6.2V/150mA |
|
LED Make |
Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
|
Optical Lens |
Yes |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
3360(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
24 Watt |
|
Power Factor |
>0.95 |
|
THD |
<10% |
|
Driver Surge Protection |
4-6KV |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
110x60 mm |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Aluminum Pressure Die Casting |
|
Housing Color Type |
Metal Powder Coated |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
0.440 Kg |
|
Luminaries Size |
280 ×108 × 50mm3 |
|
Pole Dia Entry |
45mm |
|
Mounting Device |
Clamp |
|
Mounting Style |
Pole/Wall |
|
Glass Type |
Poly carbonate lens |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
Gasket Type |
Silicone Rubber Gasket |
|
IP Rating |
IP65/IP66 |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
Specifications
| Material | Aluminium |
| Lighting Type | LED |
| IP Rating | IP66 |
| Lighting Color | Cool White |
| Certification | CE |
| Sensor | Yes |
| Input Voltage | 230VAC |
| Power | 100 WATT |
| Usage/Application | OUTDOOR LED LIGHTING,GARDEN LIGHT, ROADWAY LIGHT, HIGH WAY LIGHTING |
| Color Temperature | 6500K |
| Luminous Flux | 170 PER WATT |
| Maximum Current Consumption Ma | 0.5A |
| Surge Protection | 10KV |
| Lifetime | 50000 HRS |
| Capacity | 100 WATT |
| Nominal Voltage | 230VAC |
| Operating Voltage | 230VAC |
| Working Lifetime Hour | 50000 HRS |
| Driver Efficiency | 90.00% |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Bridge lux |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 14000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
