Light Switchess

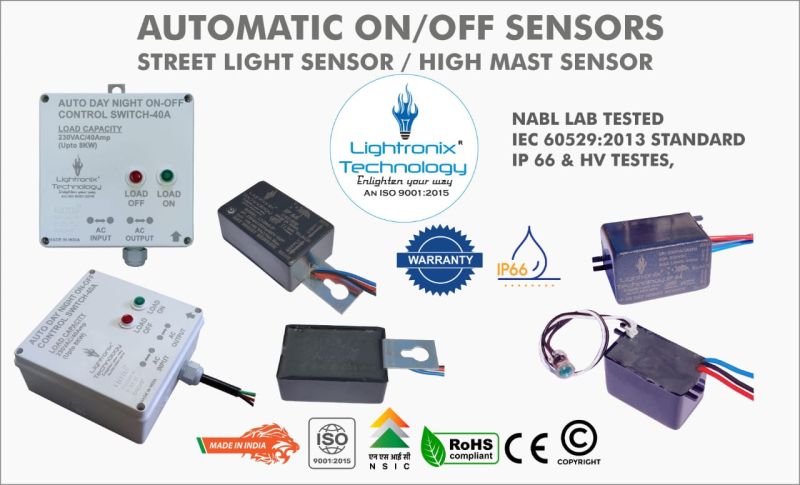

Leading Manufacturers, Exporters and Wholesaler of 10A Day Night Sensor Switch, 10A Ldr Sensor Switch, 3 Phase Sensor Switch, Day Night Sensor Switch, High Mast Light Control Switch, High Mast Sensor Switch, Ldr Sensor Switch and Street Light Sensor Switch from Gandhinagar.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | LIGHTRONIX TECHNOLOGY |
| Country of Origin | India |
| Power Source | 220-240 V AC |
| Power Frequency | 50 Hz |
| IP Rating | IP 66 |
| Size | 75x45x30 mm3 (+-2mm Tolerance) |
| Working Temperature | -20 to +50 DegC |
| Product Code | LT-DNS-IP |
| Port | GANDHINAGAR, GUJARAT |
| Delivery Time | 1 DAY |
|
Model |

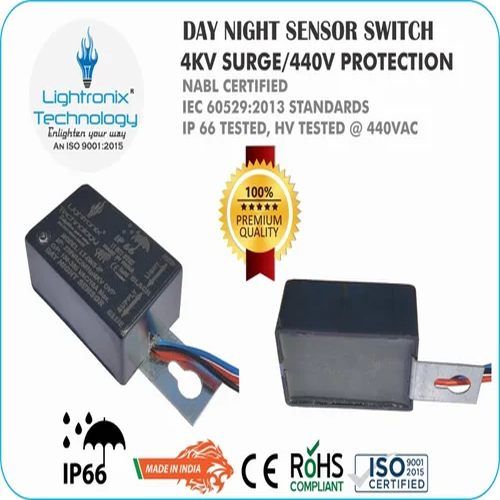

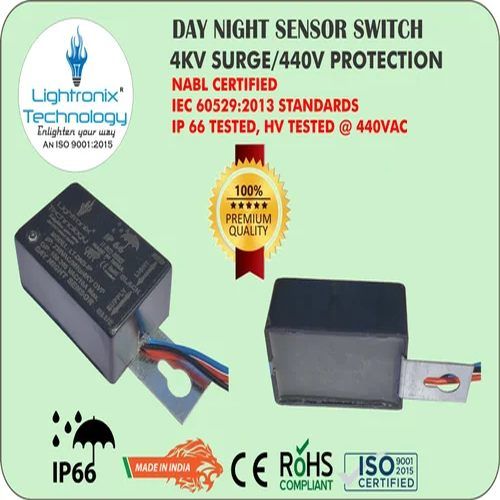

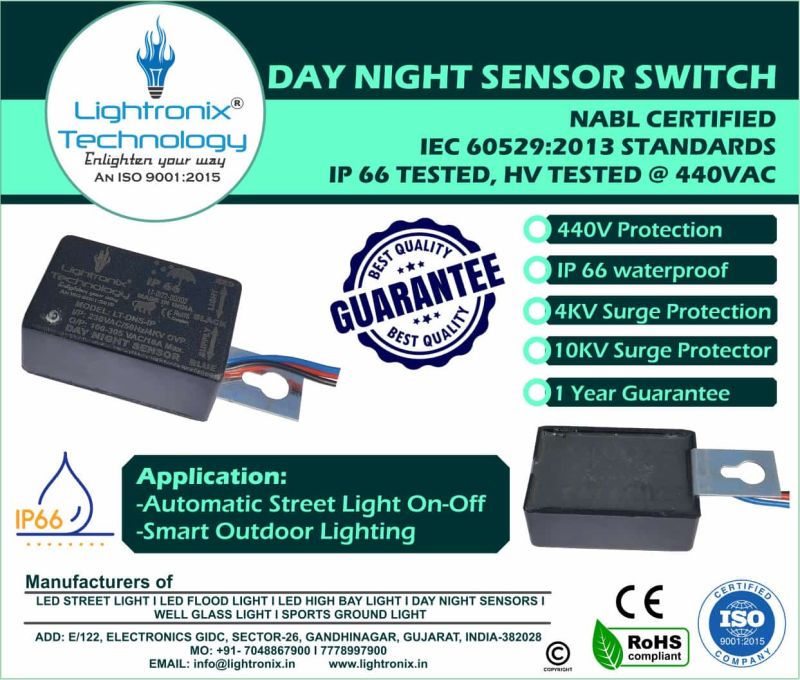

LT-DNS-IP (IP66 DAY NIGHT SENSOR) |
|
|
Certification |
IEC 60529:2013 IP66 TEST (NABL CERTIFIED) |
|
|
Dimension |
|
|
|
Weight |
90 gm (IP) (±10gm Tolerance) |
|
|
Input Voltage |
100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) |
|
|
Operating Frequency |
50 Hz |
|
|
External Load capacity |
Up to 300 Watt |
|
|
Output Voltage/Current |
240VAC / 10 A / 16A / 20A (±10% Tolerance) |
|
|
Off load power consumption |
0.54 W |
|
|
Surge protection |
4 KV Protection |
|
|
Ambient Light |
6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX |
|
|
Availability |
With IP66 Potted |
|
|
Potting Material |
Hybrid polymer (Thermal conductivity – 0.7) |
|
|
Warranty |
1 Year ( Warranty will not cover if sensor is in burn condition) |
|
|
Additional Features |
-With best quality and Original components for automatic circuit. |
|
|
Application |
-Street light, Security lights, Garden lights, |
|
|
Function |
Automatic switch ON light in NIGHT. |
|
|
Terminology |
AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length) |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Frequency | 50HZ |
| Material | Metal & Plastic,ABS |
| Brand Name | Lightronix |
| Power | 10-15Amp |
| Application | Industrial Use, Outdoor Lighting use |
| Certification | CE Certified, ISO 9001:2008 Certified, NABL Lab certified |
| Voltage | 230VAC |
| Operating Voltage | 230 V |
| Size | 60X38X25 mm3 (+-2mm Tolerance) |
| Working Temperature | -20 to +50 DegC |
| Type | IP66 waterproof |
| Warranty | 1 year |
| Product Code | day night sensor switch |
| Port | Gandhinagar |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 1 day |
| Packaging Details | 300 nos |
|
Model |

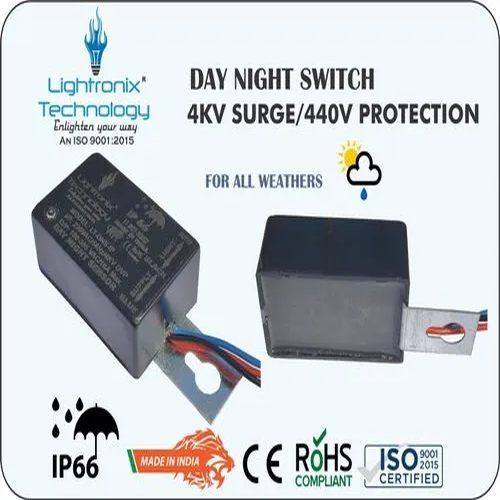

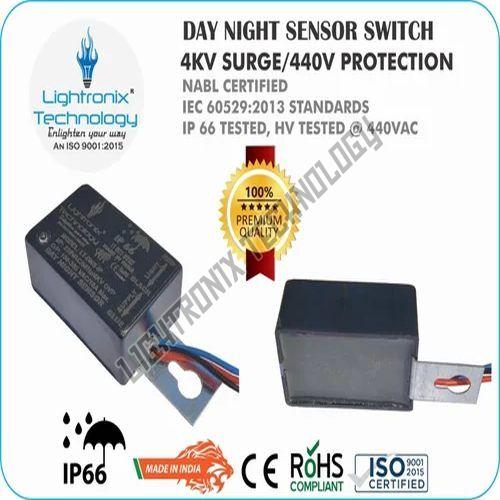

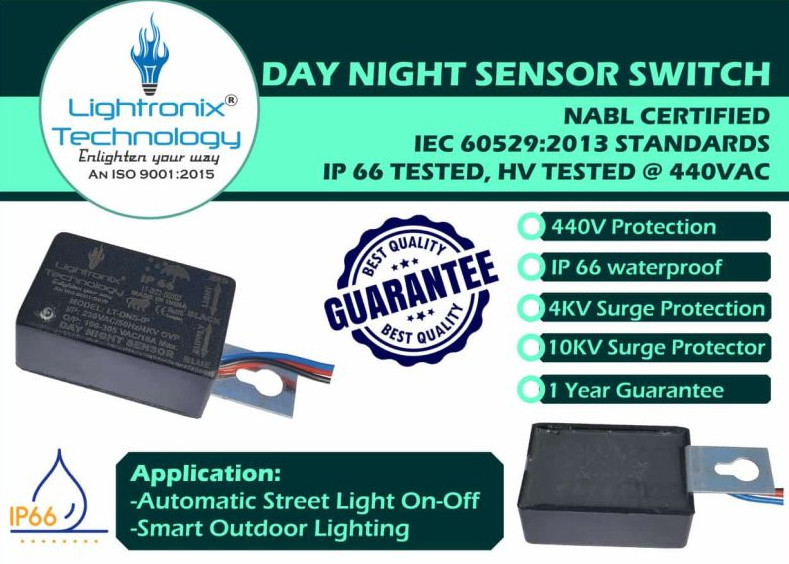

LT-DNS-IP (IP66 DAY NIGHT SENSOR) |
|
|
Certification |
IEC 60529:2013 IP66 TEST (NABL CERTIFIED) |
|
|
Dimension |
|
|
|
Weight |
90 gm (IP) (±10gm Tolerance) |
|
|
Input Voltage |
100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) |
|
|
Operating Frequency |
50 Hz |
|
|
External Load capacity |
Up to 300 Watt |
|
|
Output Voltage/Current |
240VAC / 10 A / 16A / 20A (±10% Tolerance) |
|
|
Off load power consumption |
0.54 W |
|
|
Surge protection |
4 KV Protection |
|
|
Ambient Light |
6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX |
|
|
Availability |
With IP66 Potted |
|
|
Potting Material |
Hybrid polymer (Thermal conductivity – 0.7) |
|
|
Warranty |
1 Year ( Warranty will not cover if sensor is in burn condition) |
|
|
Additional Features |
-With best quality and Original components for automatic circuit. |
|
|
Application |
-Street light, Security lights, Garden lights, |
|
|
Function |
Automatic switch ON light in NIGHT. |
|
|
Terminology |
AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length) |
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Sensor Switches |
| Application | Industrial Use |
| Material | ABS |
| Brand Name | LIGHTRONIX TECHNOLOGY |
| Frequency | 50HZ |
| Country of Origin | India |
| Voltage | 230VAC, 3 PHASE 415VAC / 0 To 12A (3 Phase) |
| Power | 6kW |
| Rated Load Current | 18A |
| Weight | 1.2 KG (±10gm Tolerance) |
| Dimension | 180×170×110 mm3 (±2mm Tolerance) |
| Sensor Position | Top of the Enclosure |
| Product Code | HIGH MAST SENSOR 3 PHASE |
| Port | GANDHINAGAR, GUJARAT |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | As per order quantity |
| Packaging Details | 01 NOS |
|
Model |

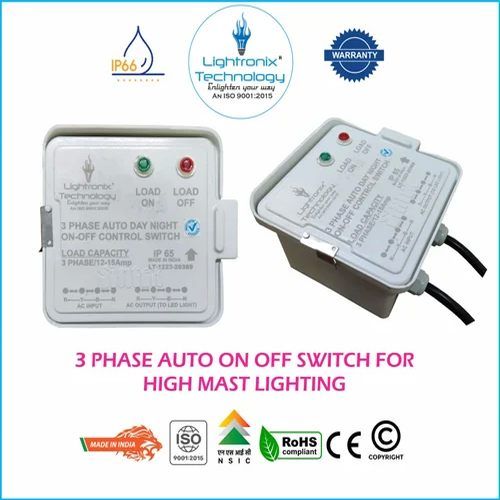

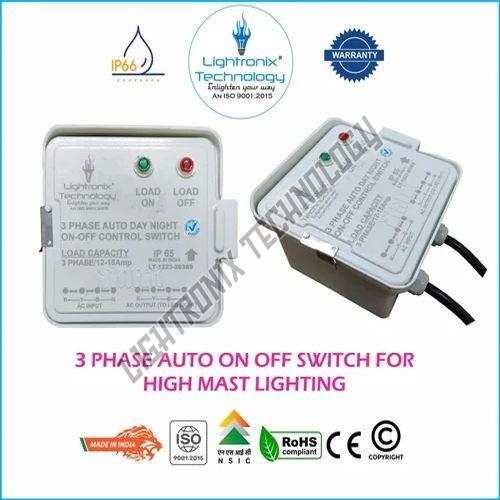

LT-3 PHASE-ADNS (18A) |
|
|
|
||
|
Input Voltage |
3 PHASE 415VAC / 0 to 18A (3 Phase) |
|
|
Output Voltage/Current |
3 PHASE 415VAC / 0 to 18A (±10% Tolerance) |
|
|
Operating Frequency |
50/60 Hz |
|
|
External Load capacity |
7-8KW (Maximum) (18A Each Phase) |
|
|
Off load power consumption |
0.60 W |
|
|
Surge protection |
4-6 KV Protection |
|
|
|
||
|
Dimension |
|
|
|
Weight |
1.2 KG (±10gm Tolerance) |
|
|
Sensor Position |
Top of the Enclosure |
|
|
Enclosure Material |
ABS Enclosure IP65 |
|
|
Mounting Type |
Pole Mount / Wall Mount |
|
|
LED Indication |
RED Indicator - Load OFF (Normally ON at Day time) |
|
|
Green Indicator – Load ON (Normally ON at Night time) |
||
|
|
||
|
Warranty |
1 Year (Warranty will not cover if it is in burn condition) |
|
|
Additional Features |
-Single shot ON-OFF operation. -Premium quality components with higher accuracy. |
|
|
Application |
-Street light, High Mast Light, Security lights, Garden lights, |
|
|
Function |
Automatic switch ON light in NIGHT. |
|
|
Terminology |
RED-YELLOW-BLUE-NEUTRAL - 3Ø Input AC Supply RED-YELLOW-BLUE-NEUTRAL - 3Ø Output To Led Lights |
|
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Output Typeq | Analog |
| Power Source | 220-240 V AC |
| Power Frequency | 50 Hz |
| Rate Load Current | 10 A |
| Size | 75x45x30 mm3 (+-2mm Tolerance) |
| IP Rating | IP 67 |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Country of Origin | India |
| Material | ABS |
| Surface Finishing | Polished |
| Shape | Square |
| Color | White |
| Design | Standard |
| Condition | New |
| Operating Voltage | 220 V |
| Switching Delay | Instant Switching |
| Frequency | 50 Hz |
| Current | 40 A |
| Rated Power | 8 Kw |
| Product Code | High mast sensor switch |
| Port | Gandhinagar |
| Payment Terms | L/C, D/A, D/P, T/T |
| Delivery Time | 1 day |
| Packaging Details | 01 box |
|
Model |

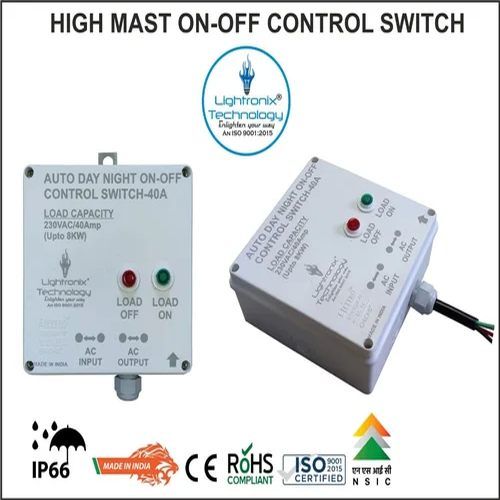

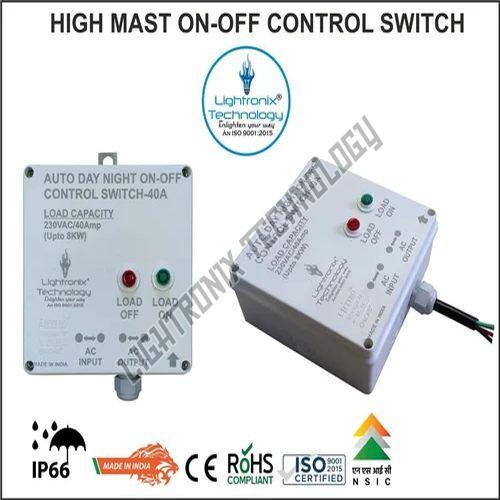

LT-ADNS-40A |
|
|
|
||
|
Input Voltage |
230VAC / 0 to 40 Amp (Single Phase) |
|
|
Output Voltage/Current |
230VAC /25A/40A (±10% Tolerance) |
|
|
Operating Frequency |
50/60 Hz |
|
|
External Load capacity |
8KW (Maximum) |
|
|
Off load power consumption |
0.60 W |
|
|
Surge protection |
4-6 KV Protection |
|
|
|
||
|
Dimension |
|
|
|
Weight |
0.57 KG (±10gm Tolerance) |
|
|
Sensor Position |
Top of the Enclosure |
|
|
Enclosure Material |
ABS Enclosure IP65 |
|
|
Mounting Type |
Pole Mount / Wall Mount |
|
|
LED Indication |
RED Indicator - Load OFF (Normally ON at Day time) |
|
|
Green Indicator – Load ON (Normally ON at Night time) |
||
|
|
||
|
Warranty |
1 Year (Warranty will not cover if it is in burn condition) |
|
|
Additional Features |
-Single shot ON-OFF operation. -Premium quality components with higher accuracy. |
|
|
Application |
-Street light, High Mast Light, Security lights, Garden lights, |
|
|
Function |
Automatic switch ON light in NIGHT. |
|
|
Terminology |
RED & BLACK WIRE - Input AC Supply YELLOW & BLUE WIRE - Output To Led Lights |
|
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix,LIGHTRONIX |
| Application | Industrial Use, High Mast Light Control |
| Certification | CE Certified |
| Voltage | 230VAC |
| Frequency | 50HZ |
| Country of Origin | India |
| Power | 10-15Amp |
| Type | HIGH MAST SENSOR |
| Material | ABS |
| Warranty | 1 YEAR |
| Product Code | 3 PHASE HIGH MAST SENSOR |
| Port | GANDHINAGAR |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 1 DAYS |
| Packaging Details | 1 PC BOX |
|
Model |
LT-3 PHASE-ADNS (12A) |
|
|
|
||
|
Input Voltage |
3 PHASE 415VAC / 0 to 12A (3 Phase) |
|
|
Output Voltage/Current |
3 PHASE 415VAC / 0 to 12A (±10% Tolerance) |
|
|
Operating Frequency |
50/60 Hz |
|
|
External Load capacity |
5.5KW (Maximum) (12A Each Phase) |
|
|
Off load power consumption |
0.60 W |
|
|
Surge protection |
4-6 KV Protection |
|
|
|
||
|
Dimension |
|
|
|
Weight |
1.2 KG (±10gm Tolerance) |
|
|
Sensor Position |
Top of the Enclosure |
|
|
Enclosure Material |
ABS Enclosure IP65 |
|
|
Mounting Type |
Pole Mount / Wall Mount |
|
|
LED Indication |
RED Indicator - Load OFF (Normally ON at Day time) |
|
|
Green Indicator – Load ON (Normally ON at Night time) |
||
|
|
||
|
Warranty |
1 Year (Warranty will not cover if it is in burn condition) |
|
|
Additional Features |
-Single shot ON-OFF operation. -Premium quality components with higher accuracy. |
|
|
Application |
-Street light, High Mast Light, Security lights, Garden lights, |
|
|
Function |
Automatic switch ON light in NIGHT. |
|
|
Terminology |
RED-YELLOW-BLUE-NEUTRAL - 3Ø Input AC Supply RED-YELLOW-BLUE-NEUTRAL - 3Ø Output To Led Lights |
|
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | LIGHTRONIX TECHNOLOGY |
| Country of Origin | India |
| Material | Nylon |
| Power | 10-15Amp |
| Application | Industrial Use |
| Certification | ISO 9001:2008 Certified, NABL IP66 |
| Voltage | 230VAC |
| Operating Temperature | 40-60deg C |
| Operating Voltage | 240 V |
| Ambient Light | 6 lux to 40 lux (+- 5% tolerance) |
| Working Temperature | -20 to +50 DegC |
| IP Rating | IP 66 |
| Power Frequency | 50 Hz |
| Product Code | LT-DNS-IP |
| Port | GANDHINAGAR, GUJARAT |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Delivery Time | 1 DAY |
| Packaging Details | 300 pcs |
|
Model |
LT-DNS-IP (IP66 DAY NIGHT SENSOR) |
|
|
Certification |
IEC 60529:2013 IP66 TEST (NABL CERTIFIED) |
|
|
Dimension |
|
|
|
Weight |
90 gm (IP) (±10gm Tolerance) |
|
|
Input Voltage |
100-305 VAC (440 Volt Protection) (HV TESTED @ 440VAC) |
|
|
Operating Frequency |
50 Hz |
|
|
External Load capacity |
Up to 300 Watt |
|
|
Output Voltage/Current |
240VAC / 10 A / 16A / 20A (±10% Tolerance) |
|
|
Off load power consumption |
0.54 W |
|
|
Surge protection |
4 KV Protection |
|
|
Ambient Light |
6 lux to 40 lux (± 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX |
|
|
Availability |
With IP66 Potted |
|
|
Potting Material |
Hybrid polymer (Thermal conductivity – 0.7) |
|
|
Warranty |
1 Year ( Warranty will not cover if sensor is in burn condition) |
|
|
Additional Features |
-With best quality and Original components for automatic circuit. |
|
|
Application |
-Street light, Security lights, Garden lights, |
|
|
Function |
Automatic switch ON light in NIGHT. |
|
|
Terminology |
AC Input – BLUE & BLACK Wires Output – RED & BLACK Wires (Connect with Light or Load) (0.5 square mm copper cable – 200mm length) |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Application | Street Light Control |
| Certification | CE Certified |
| Frequency | 50HZ |
| Country of Origin | India |
| Operating | 230 V |
