| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Warranty | 2 Yrs, 2 Years |
| Light Type | LED |
| Click to view more | |
Product Details
|
GENERAL INFORMATION |
|
|
Order Code |

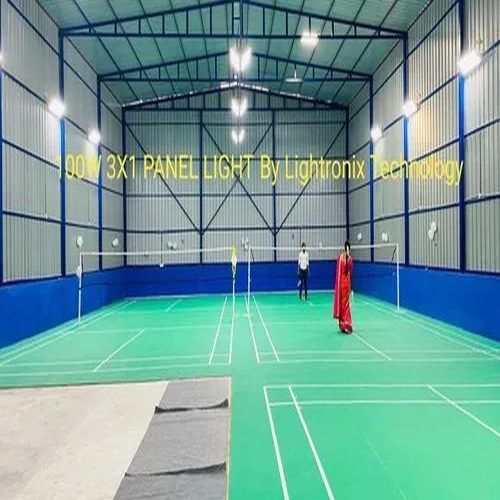

LT-100WPANEL-3×1 |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 2835 LED 0.2W |
|
Number of LED |
500 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
120 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
3.2V/60mA |
|
LED Make |
Bridge lux |
|
Optical Lens |
NA |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
14000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
100 Watt |
|
Power Factor |
>0.95 |
|
THD |
<10% |
|
Driver Surge Protection |
4-6KV |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
774x266 mm ( 2 PCB of 390x266 mm) |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Metal body (20 gauge Thickness) |
|
Housing Color Type |
Anti-dust Off grey powder coating |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
5.980 Kg |
|
Luminaries Size |
830 X 310 X 30 mm3 (±5%) |
|
Diffuser Glass Size |
820mm X 295mm |
|
Mounting Device |
Clamp |
|
Mounting Style |
Wall mounting/ceiling/Hanging |
|
Glass Type |
Anti-glare diffuser glass (2 mm thickness) |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
IP Rating |
IP54 – Dust proof (Protection against Dust & Water Splashes) |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
Specifications
| Beam Angle | 120 Degree |
| LED Model | 2835 Bridgelux led |
| CCT | 2700-6500 K |
| Input Voltage | 100-305VAC |
| Number of LEDs | 750 |
| Maximum Lumens | 21000 |
| LED Luminous Efficiency | >140Lm/W |
| Beam Angle | 120 Degree |
| LED Working Voltage | +3.2 VDC/60mA |
| Operating Frequency | 50Hz |
| Input Voltage | 100-305VAC |
| Power Factor | >=0.98 |
| CRI | 80 |
| Working Temperature | -10 to 75 degree |
| Color | Warm White/Cool White |
| Color Temperature | 2700-6500K |
| Body Type | Pressure die cast Aluminum alloy for housing gear / Extruded aluminum lamp housing (heat sink) for better heat transmission. |
| IP Rating | IP65/IP66 |
| Working Life | > 50000 Hours |
