| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Country of Origin | India |
| Working Temperature | -20 to +50 DegC |
| Click to view more | |
Product Details
Power Source
220-240 V AC
Power Frequency
50 Hz
IP Rating
IP 67
Rate Load Current
10 A
Specifications
| Operating Voltage | 230V |
| Switching Delay | Instant Switching |
| Rated Load Current | 10 A |
| Brand | LIGHTRONIX TECHNOLOGY |
| Power Frequency | 50 Hz |
| Ambient Light | 6 lux to 40 lux (+- 5% tolerance) |
| Working Temperature | -20 to +50 DegC |
| IP Rating | IP66 |
| Number of wires | 3 |
| Dimension | 60X38X25 mm3 (2mm Tolerance) |
| Weight | 90 gm (IP) (10gm Tolerance) |
| Input Voltage | 100-305 VAC |
| Operating Frequency | 50 Hz |
| External Load capacity | Up to 300 Watt |
| Output Voltage/Current | 240VAC / 10 A |
| Off load power consumption | 0.54 W |
| Surge protection | 4 KV Protection |
| Ambient Light | 6 lux to 40 lux ( 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX |
| Availability | With enclosure, With IP66 Coating With Open Circuit |
| Potting Material | Hybrid polymer (Thermal conductivity 0.7) |
| Warranty | 1 Year ( Warranty will not cover if sensor is in burn condition) |
| Additional Features | -With best quality and Original components for automatic circuit. -Single shot ON-OFF operation. -No flickering at load side. -Heavy duty and long life circuit. Fit and Forget module. |
| Application | -Street light, Security lights, Garden lights, -Industrial lights, Outdoor lights |
| Function | Automatic switch ON light in NIGHT. Automatic switch OFF light in MORNING. |
| Terminology | AC Input Yellow Wires Output Red & Black Wires (0.5 square mm copper cable 200mm length) |

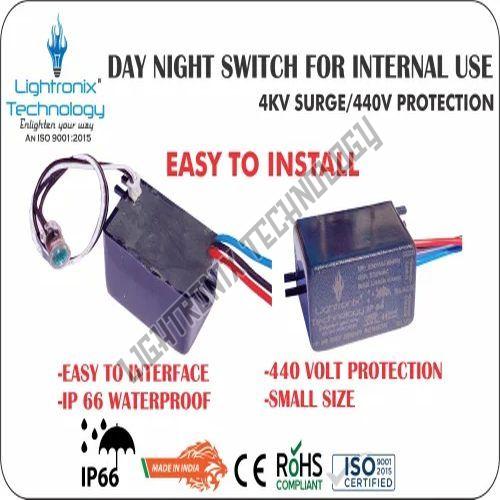

Looking for "IP66 Day Night Sensor" ?
