| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix,LIGHTRONIX |
| Application | Industrial Use, High Mast Light Control |
| Certification | CE Certified |
| Click to view more | |

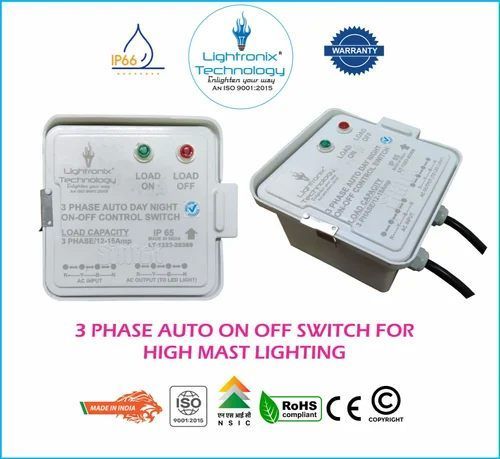

Product Details
|
Model |
LT-3 PHASE-ADNS (12A) |
|
|
|
||
|
Input Voltage |
3 PHASE 415VAC / 0 to 12A (3 Phase) |
|
|
Output Voltage/Current |
3 PHASE 415VAC / 0 to 12A (±10% Tolerance) |
|
|
Operating Frequency |
50/60 Hz |
|
|
External Load capacity |
5.5KW (Maximum) (12A Each Phase) |
|
|
Off load power consumption |
0.60 W |
|
|
Surge protection |
4-6 KV Protection |
|
|
|
||
|
Dimension |
|
|
|
Weight |
1.2 KG (±10gm Tolerance) |
|
|
Sensor Position |
Top of the Enclosure |
|
|
Enclosure Material |
ABS Enclosure IP65 |
|
|
Mounting Type |
Pole Mount / Wall Mount |
|
|
LED Indication |
RED Indicator - Load OFF (Normally ON at Day time) |
|
|
Green Indicator – Load ON (Normally ON at Night time) |
||
|
|
||
|
Warranty |
1 Year (Warranty will not cover if it is in burn condition) |
|
|
Additional Features |
-Single shot ON-OFF operation. -Premium quality components with higher accuracy. |
|
|
Application |
-Street light, High Mast Light, Security lights, Garden lights, |
|
|
Function |
Automatic switch ON light in NIGHT. |
|
|
Terminology |
RED-YELLOW-BLUE-NEUTRAL - 3Ø Input AC Supply RED-YELLOW-BLUE-NEUTRAL - 3Ø Output To Led Lights |
|
Specifications
| Operating Voltage | 230V |
| Sensor Type | light sensors |
| Switching Delay | Instant Switching |
| Rated Load Current | 18A |
| Brand | Lightronix Technology |
| Model | LT-ADNS |
| Power Frequency | 50 Hz |
| Rated Power | 6kW |
| Working Temperature | -20 to +50 DegC |
| IP Rating | IP66 |
| Number of wires | 4 |
| Working Humidity | <93%RH |
| Mount Type | Pole Mount |
| Body Material | ABS |
| Switch Upto | 5KW |
| Output Capacity | 5KW to 6KW |
| nput Voltage | 3 PHASE 415VAC / 0 to 18A (3 Phase) |
| Output Voltage/Current | 3 PHASE 415VAC / 0 to 18A (±10% Tolerance) |
| Operating Frequency | 50/60 Hz |
| External Load capacity | 5.5KW (Maximum) |
| Off load power consumption | 0.60 W |
| Surge protection | 4-6 KV Protection |
| Dimension | 180×170×110 mm3 (±2mm Tolerance) |
| Weight | 1.2 KG (±10gm Tolerance) |
| Sensor Position | Top of the Enclosure |
| Enclosure Material | ABS Enclosure IP65 |
| Mounting Type | Pole Mount / Wall Mount |
| LED Indication | RED Indicator - Load OFF (Normally ON at Day time) |
| Green Indicator – Load ON (Normally ON at Night time) |
