| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | LIGHTRONIX |
| Material | Aluminum Casting |
| Housing Material | Aluminum Casting |
| Click to view more | |
Product Details
Lighting Type
LED FLOOD LIGHT
Material alluminium body
Aluminum Casting
Color
WHITE
Condition
NEW
Power
100W
Power Supply
230VAC
Body Color
GREY
Color Temperature
650K
Power Consumption
100W
Lighting Color
WHITE
Power Factor
>0.95
Lighting Colors
6500K
Application
Shop, Market, Malls, Garden
Model Number
LT-100WFL-ESTELLA
Certification
CE Certified
Feature
Stable Performance, Low Consumption, Bright And Shining
Voltage
230VAC
Type
Led Flood Light
Frequency
50HZ
Wattage
100W
Warranty
2years
Beam Angle
90
Country of Origin
India
IP Rating
IP66
Lumens
140
Protection rating
10KV
Maximum Lumens
14000
Optical Cover
LENS
CRI
80
6KV driver
YES
Colour Temperature
6500K
Driver
IP66 DRIVER
Beam Angles
90
SPD
10KV
LED Lumen
170LM
Lifetime
50000 HRS
Lumen
170LM
Product Code
LT-100WFL-ESTELLA
Specifications
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30,45,60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30,45,60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 17000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 100 Watt |
| Power Factor | >0.95 |
| THD | 90.00% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 178X126 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 2.670 Kg |
| Luminaries Size | 225 × 295 × 135mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 210x262 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |

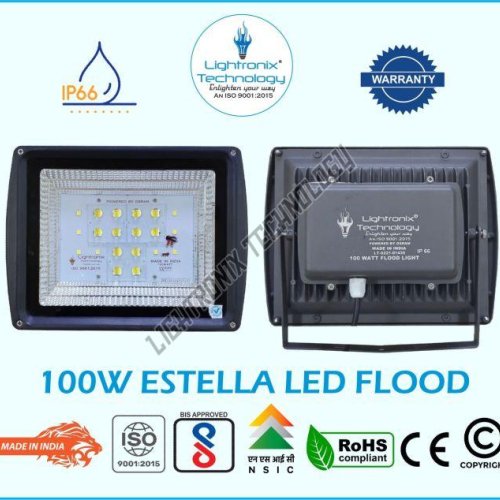

Looking for "100 Watt LED Flood Light Estella" ?
