| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Material | Aluminum Casting |
| Application | Shop,Market,Malls,Home,Garden |
| Click to view more | |
Product Details
Color
White
Feature
Stable Performance,Bright And Shining
Condition
NEW
Power Supply
230V
Housing Material
Aluminum Casting
Body Color
GREY
Light Source
LED
Power Consumption
100W
Protection rating
10KV
CRI
80
Power Requirement
100W
Power Factor
>0.95
Material alluminium body
Aluminum Casting
White colour
YES
6KV driver
YES
Colour Temperature
6500K
Driver
IP66
Beam Angle
120
SPD
10KV
LED Lumen
140
Lifetime
5000 Hours
Led Model Number
3030
Product Code
LT-100WFL-ECOSLIM
Specifications
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 14000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 100 Watt |
| Power Factor | >0.95 |
| THD | 90.00% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 135X93 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 1.920 Kg |
| Luminaries Size | 270 × 242 × 51 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 221x249 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |

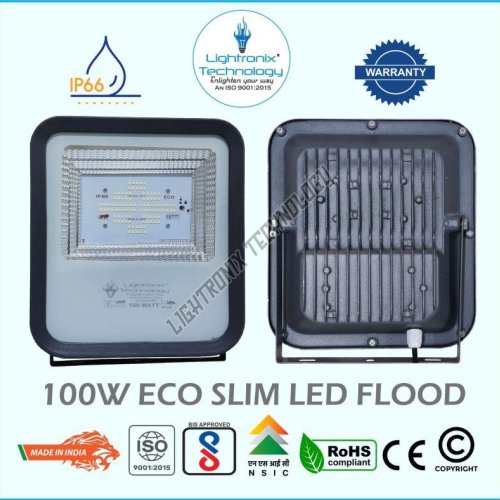

Looking for "100 Watt Slim LED Flood Light" ?
