| Business Type | Manufacturer, Exporter, Supplier |
| Material | Die-cast |
| IP Rating | IP66 |
| Beam Angle | 60° |
| Click to view more | |
Product Details
|
GENERAL INFORMATION |
|
|
Order Code |

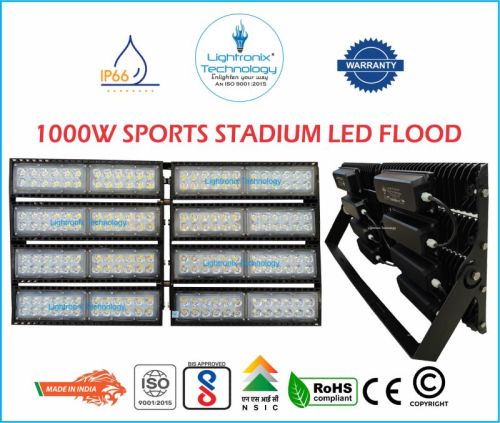

LT-1000WFL-SPORTS (200W TO 2000W AVAILABLE) |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 5050 LED |
|
Number of LED |
192 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
15,30,45,60 degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White |
|
Color Temperature |
6500K |
|
Led Voltage/Current |
6.2V/750mA |
|
LED Make |
Bridge lux |
|
Optical Lens |
15,30,45,60 degree Polycarbonate lens |
|
Luminous Efficiency |
170 Lm/W |
|
Total Lumens |
170000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
Vertical area Output |
>300ft |
|
Radius Area Output |
600-1000ft |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
108-305VAC |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
1000 Watt (200W TO 2000W AVAILABLE) |
|
Power Factor |
>0.97 |
|
THD |
90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection (48 Hours) |
|
Under voltage Protection |
108VAC |
|
Auto cutoff Voltage |
Lower Side310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
148x45mm – 16 PCB |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Aluminum Pressure Die Casting |
|
Housing Color Type |
Metal Powder Coated |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
14.92 Kg |
|
Luminaries Size |
800×410 ×100 mm3 |
|
Mounting Device |
Bracket |
|
Mounting Style |
Wall/Pole/Ceiling/Roof/Hanging |
|
Glass Type |
PC Lens cover |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
Gasket Type |
Silicone Rubber Gasket |
|
IP Rating |
IP66 |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
