| Business Type | Manufacturer, Exporter, Supplier |
| Lighting Colors | WHITE |
| Country of Origin | India |
| Led Beam Angle | 30,45,60 or 90 degree Polycarbonate lens |
| Click to view more | |
Product Details
CRI (Color Rendering Index)
>80
LED Life Span
>60000 Hours
Color
White/Warm White/Cool White (As Per Order)
Color Temperature
2700-6500K(As Per Order)
Led Voltage/Current
6.2V/750mA
Wide Input Voltage Range
90-310VAC(With Auto Cutoff)
Operating Frequency
50/60HZ
Total Luminaries Weight
5.100 Kg
Product Code
LT-200WFL-ESTELLA
Specifications
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30,45,60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30,45,60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 34000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt |
| Power Factor | >0.95 |
| THD | 90.00% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 267x200mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 5.100 Kg |
| Luminaries Size | 397 × 290 × 135 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass Size | 273x345 mm² |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |

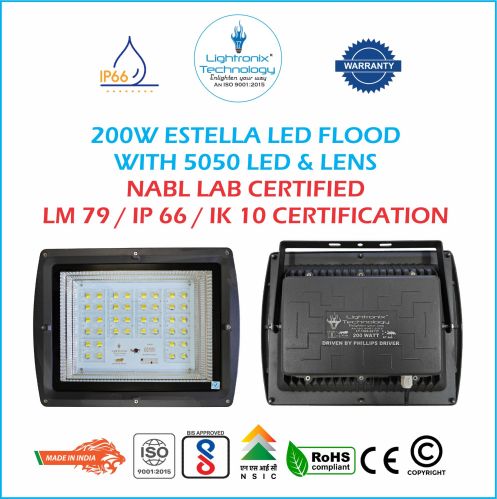

Looking for "200 Watt LED Flood Light Estella" ?
