| Business Type | Manufacturer, Exporter, Supplier |
| Wattage | 300 |
| Country of Origin | 230VAC |
| Led Beam Angle | 30,45,60 or 90 degree Polycarbonate lens |
| Click to view more | |

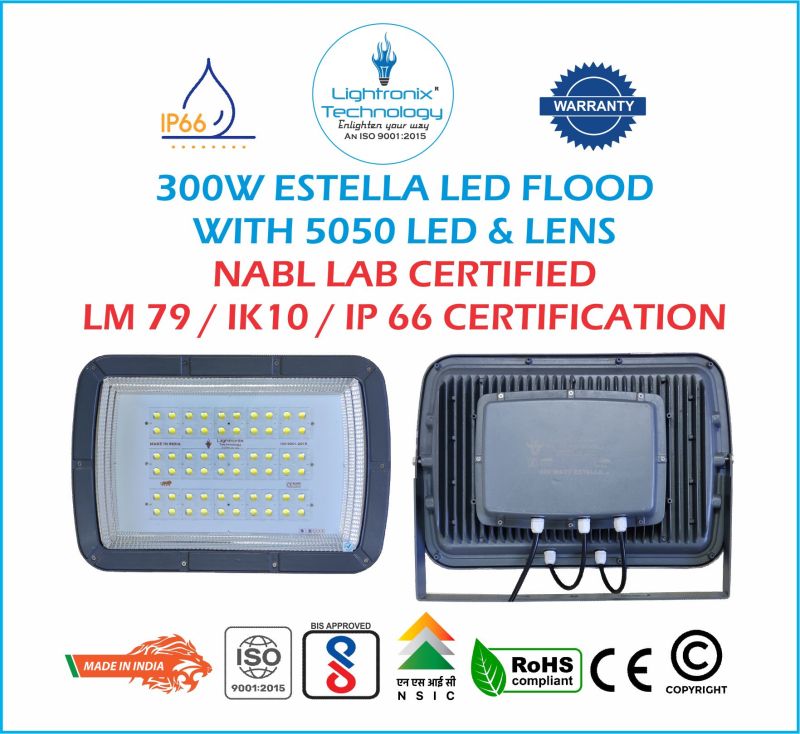

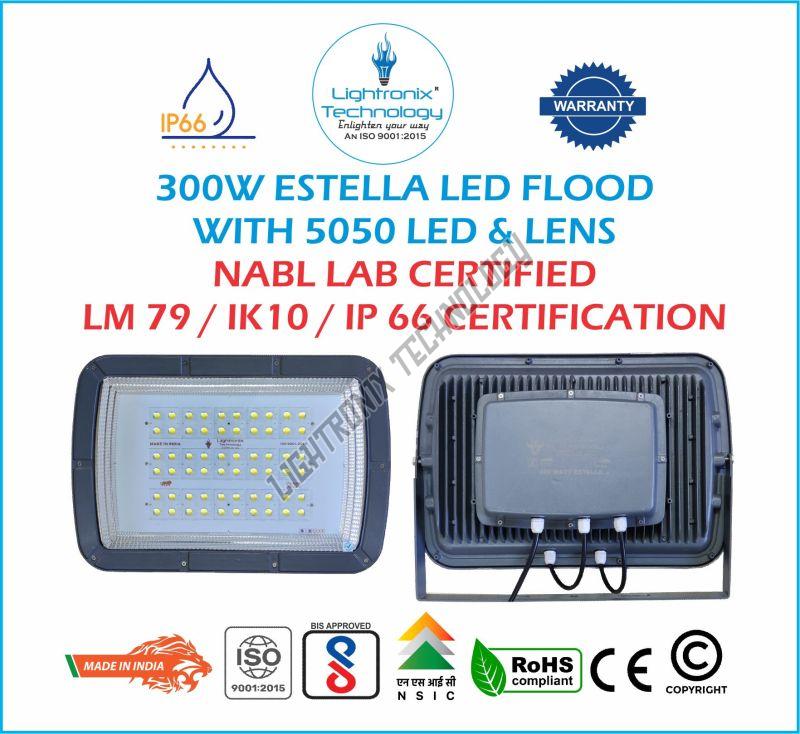

Product Details
Led Floodlight, ac led Floodlight, Floodlight, roadway light, roadway led Floodlight, outdoor led Floodlight, high power led Floodlight, pure white led Floodlight, warm white led Floodlight, white led Floodlight, cool white led Floodlight, natural white led Floodlight, power led Floodlight, lens model led Floodlight, lens led Floodlight, glass led Floodlight, frame led Floodlight, aluminum led Floodlight, led Floodlight luminaire, Floodlight luminaire, Floodlight fixture, led Floodlight fixture, smart Floodlight, smart led Floodlight, automatic on off led Floodlight, auto on off led Floodlight, ldr sensor based led Floodlight, led Floodlight with ldr sensor, day night on off Floodlight, Floodlight with auto on off switch, sensor based led Floodlight, photo sensor led Floodlight, auto dimming led Floodlight, led Floodlight with auto dimming, Floodlight fitting, Floodlight housing, energy saving Floodlight, energy saving led Floodlight, power saving Floodlight, Floodlight for pole, aluminum die cast led Floodlight, High mast lighting, Led high mast light, Led mast light, Led light for high mast, Flood light for high mast pole, sport led light, sports ground light, sports led flood light, led lights for sports ground, led flood light for sports ground, cricket stadium light, led light for cricket stadium, led light for football ground, led flood light for football ground, led flood light for tennis court, flood light for tennis court, IP66 led flood light, IP66 waterproof led flood light, waterproof led flood light, weatherproof led flood light, led flood light for ground, flood light for ground, led flood light for cricket stadium, flood light for cricket stadium, focus light, led focus light. High beam led flood light, narrow beam led flood light, led flood light for factory, led flood light for outdoor area, focus light for outdoor area, led focus light for ground, outdoor led lighting, high mast tower light, high mast tower led light, slim led flood light, down choke led flood light, GM model led flood light, led flood light with 2 years warranty,
Specifications
| OPTICAL PARAMETERS | |
| Led Beam Angle | 30,45,60 or 90 degree Polycarbonate lens |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | 30,45,60 or 90 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 51000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| Vertical area Output | >50ft |
| Radius Area Output | 100-150ft |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 300 Watt |
| Power Factor | >0.95 |
| THD | 90.00% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 250x395mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 8 Kg |
| Luminaries Size | 495x336x140 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
