Product Details
Lighting Type

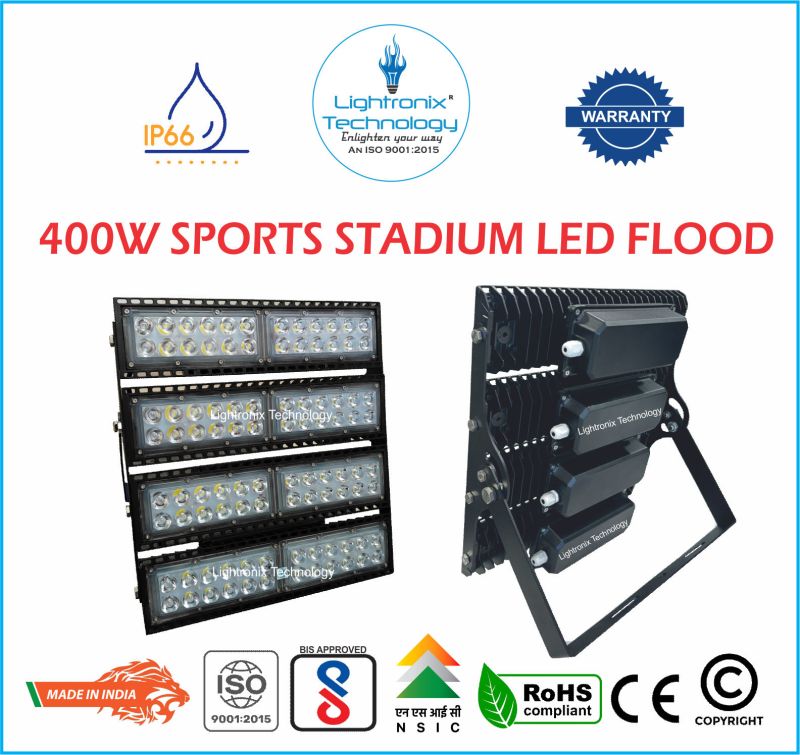

STADIUM LED LIGHT
Material alluminium body
Aluminum Casting
Country of Origin
India
Wattage
400W
Application
Stadium
Beam Angle
120°
IP Rating
IP66
Light Type
LED
Lumen Output
52000lm
Color Temp
5700K
Lifespan
50,000 hrs
Mount Type
Bracket
Specifications
| OPTICAL PARAMETERS | |
| Led Beam Angle | 15,30,45,60 degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White |
| Color Temperature | 6500K |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Bridge lux |
| Optical Lens | 15,30,45,60 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 85000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| Vertical area Output | >100ft |
| Radius Area Output | 200-300ft |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 108-305VAC |
| Operating Frequency | 50/60HZ |
| Power Consumption | 400 Watt (200W TO 2000W AVAILABLE) |
| Power Factor | >0.97 |
| THD | 90.00% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection (48 Hours) |
| Under voltage Protection | 108VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 148x45mm – 08 PCB |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 7.45 Kg |
| Luminaries Size | 390×410 ×100 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | PC Lens cover |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
