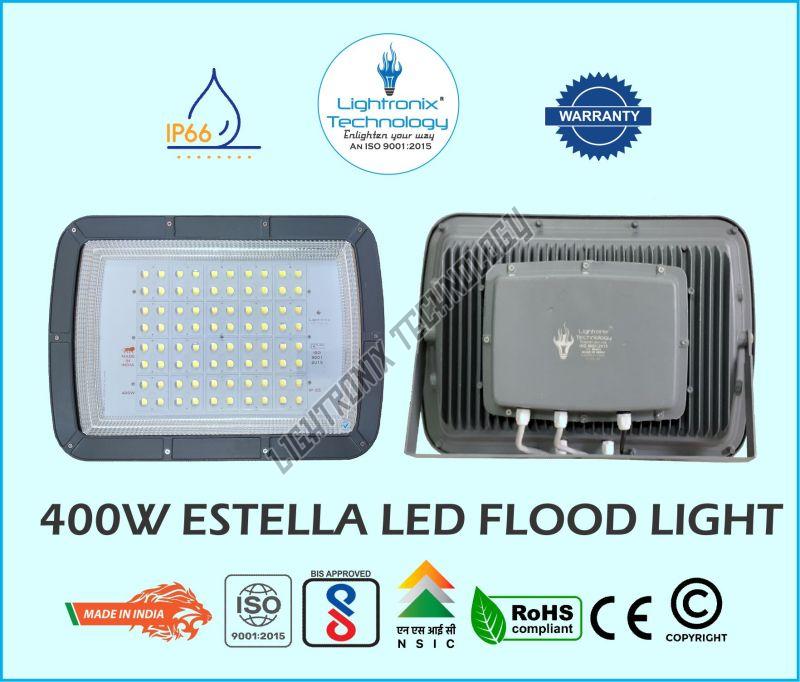

400 Watt LED Flood Light Estella

Link Copied
8,200.00 / Piece

2 Pieces (MOQ)

Business Type Manufacturer, Exporter, Supplier
Lighting Colors WHITE
Country of Origin India
Led Beam Angle 30,45,60 or 90 Degree Polycarbonate Lens
Click to view more

Product Details

LED Life Span
>60000 Hours
Color Temperature
2700-6500K(As Per Order)
Led Voltage/Current
6.2V/750mA
Luminous Efficiency
170 Lm/W
Total Lumens
68000(±5%)
Optical Efficiency
>93%
Thermal Efficiency
>90%
Operating Frequency
50/60HZ
Power Consumption
400 Watt
Supply Phase
Single Phase Supply
Over voltage Protection
440VAC Protection
Under voltage Protection
90VAC
Product Code
LT-400WFL-ESTELLA

Yes! I am interested


Specifications

OPTICAL PARAMETERS
Led Beam Angle 30,45,60 or 90 degree Polycarbonate lens
CRI (Color Rendering Index) >80
LED Life Span >60000 Hours
Color White/Warm White/Cool White (As Per Order)
Color Temperature 2700-6500K(As Per Order)
Led Voltage/Current 6.2V/750mA
LED Make Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement)
Optical Lens 30,45,60 or 90 degree Polycarbonate lens
Luminous Efficiency 170 Lm/W
Total Lumens 68000(±5%)
Optical Efficiency >93%
Thermal Efficiency >90%
Vertical area Output >50ft
Radius Area Output 100-150ft
ELECTRICAL PARAMETERS
Wide Input Voltage Range 90-310VAC(With Auto Cutoff)
Operating Frequency 50/60HZ
Power Consumption 400 Watt
Power Factor >0.95
THD 90.00%
Supply Phase Single Phase Supply
Over voltage Protection 440VAC Protection
Under voltage Protection 90VAC
Auto cutoff Voltage Lower Side310VAC
PCB INFORMATION
PCB Thickness 1.6mm(±5% Tolerance)
PCB Material Pure Aluminum-Copper
Copper Layer Thickness Standard 0.35 Micron
Copper Conductivity >1 Watt
PCB Size 250x395mm
MECHANICAL PARAMETERS
Housing Material Aluminum Pressure Die Casting
Housing Color Type Metal Powder Coated
Housing Shape Rectangle
Total Luminaries Weight 10 Kg
Luminaries Size 495x336x140 mm3
Mounting Device Bracket
Mounting Style Wall/Pole/Ceiling/Roof/Hanging
Glass Type 4mm Toughen Glass
Cable Entry Option PG7 Cable Gland with Rubber Washer
Screw Type Stainless Steel Screw
Gasket Type Silicone Rubber Gasket
IP Rating IP65/IP66
Impact Rating IK08/IK10
Marking Type Laser Marking/Engraving
