| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Power Source | 220-240 V AC |
| Power Frequency | 50 Hz |
| Click to view more | |

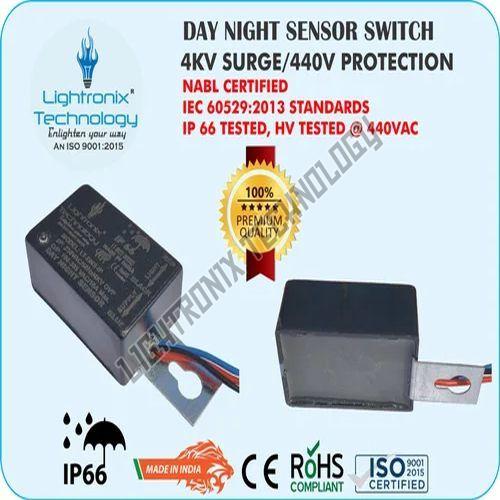

Product Details
Day night sensor, day night sensor switch, waterproof day night sensor, IP66 day night sensor, IP66 day night sensor switch, IP66 auto on off sensor switch, 10A day night sensor switch, 6A day night sensor switch, outdoor sensor switch, day night switch
Day night switch, day night auto on off switch, day night sensor for street light, auto on off switch for street light, auto on off switch for led street light,
Street light sensor, IP66 Street light sensor, street light auto on off sensor, smart street light on off sensor, led street light sensor, led street light on off sensor, led street light auto on off sensor,
Dusk to down sensor, dusk to down sensor for street light, day night light sensor, dusk to down switch, IP66 dusk to down sensor, IP66 dusk to down sensor switch,
Ldr sensor, Ldr sensor switch, auto on off Ldr switch, Ldr switch for led street light, Ldr switch for auto on off street light, Ldr sensor module, 10A Ldr sensor switch, 6A Ldr sensor switch
Photo sensor switch, photo sensor switch for led street light, photovoltaic sensor switch,
High mast sensor switch, high mast light sensor switch, Led High mast sensor switch, IP66 High mast sensor switch, High mast auto on off switch, 40A high mast auto on off switch, 3 phase high mast sensor switch, IP66 High mast auto on off switch
High mast led auto on of switch, led high mast auto on off switch, high mast sensor,
20A day night sensor switch, 15A day night sensor switch,
Smart street light sensor, street light with sensor, led street light with sensor, led street light with auto on off sensor, led street light with day night sensor, led street light with inbuilt sensor,
Specifications
| Sensor Type | light sensors |
| Operating Voltage | 230V |
| Switching Delay | Instant Switching |
| Rate Load Current | 10 A |
| Brand | Lightronix Technology |
| Model | LT-DNS-IP |
| Power Frequency | 50 Hz |
| Ambient Light | 6 to 40 Lux |
| Working Temperature | -20 to +50 DegC |
| IP Rating | IP66 |
| Number of wires | 3 |
| Mount Type | CLAMP |
| Application | Automatic street light On - Off |
| Power Source | 220-240 V AC |
| CERTIFICATION | IEC 60529:2013 NABL CERTIFIED IP66 WATERPROOF REPORT |
| Dimension | 60X38X25 mm3 (2mm Tolerance) |
| Weight | 90 gm (IP) (10gm Tolerance) |
| Input Voltage | 100-305 VAC |
| Operating Frequency | 50 Hz |
| External Load capacity | Up to 300 Watt |
| Output Voltage/Current | 240VAC / 10 A |
| Off load power consumption | 0.54 W |
| Surge protection | 4 KV Protection |
| Ambient Light | 6 lux to 40 lux ( 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX |
| Availability | With enclosure, With IP66 Coating With Open Circuit |
| Potting Material | Hybrid polymer (Thermal conductivity 0.7) |
| Warranty | 1 Year ( Warranty will not cover if sensor is in burn condition) |
| Additional Features | -With best quality and Original components for automatic circuit. -Single shot ON-OFF operation. -No flickering at load side. -Heavy duty and long life circuit. Fit and Forget module. |
| Application | -Street light, Security lights, Garden lights, -Industrial lights, Outdoor lights |
| Function | Automatic switch ON light in NIGHT. Automatic switch OFF light in MORNING. |
| Terminology | AC Input Yellow Wires Output Red & Black Wires (0.5 square mm copper cable 200mm length) |
