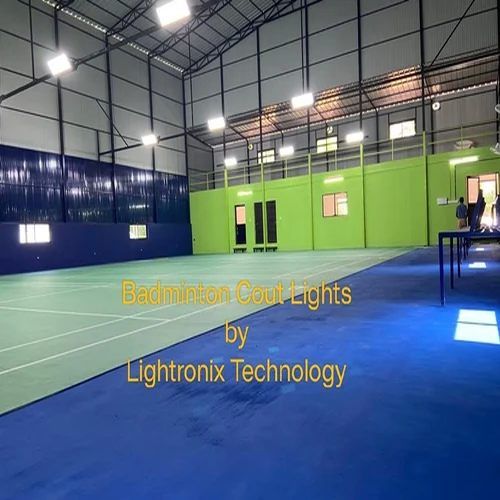

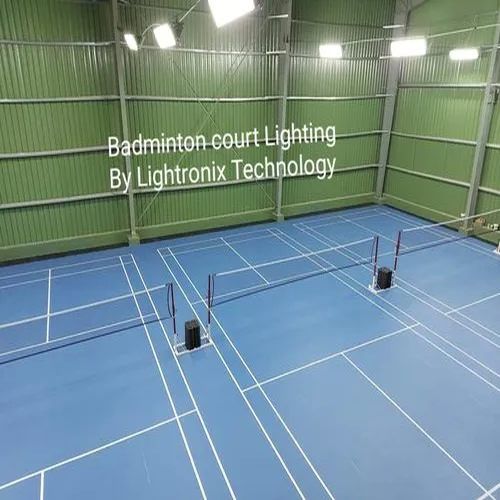

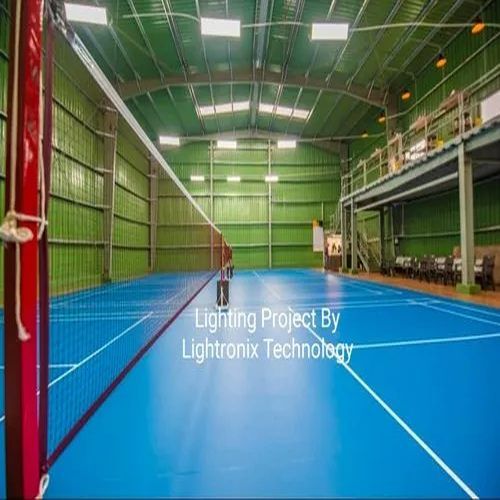

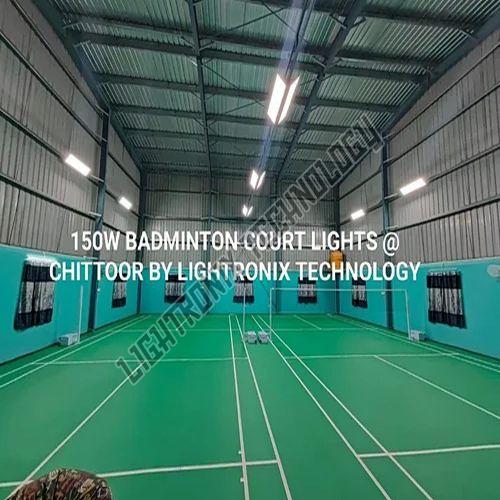

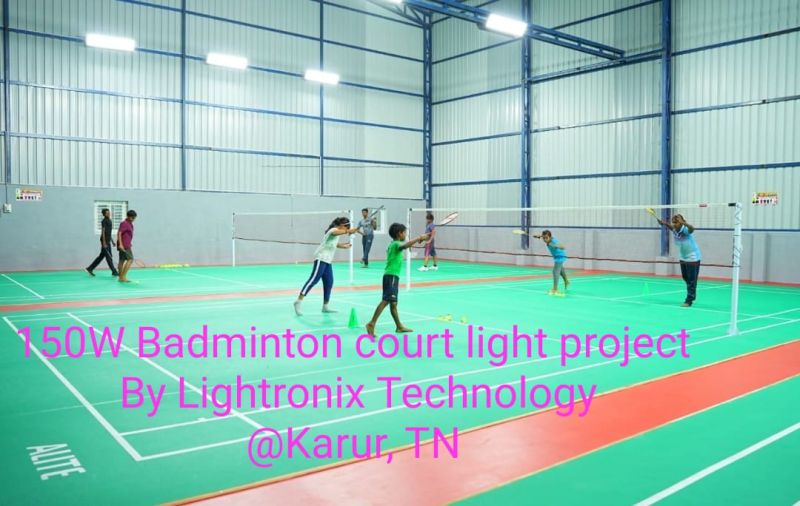

Indoor Sports Ground Lights

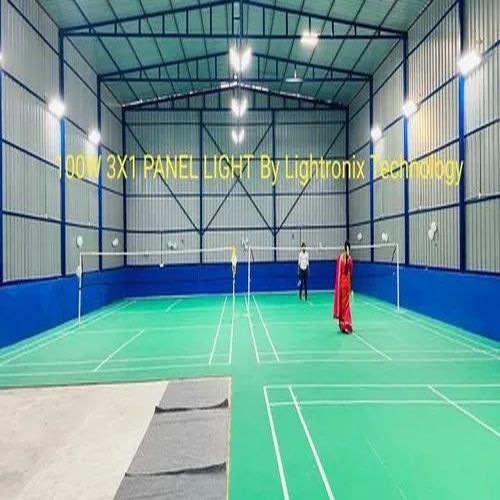

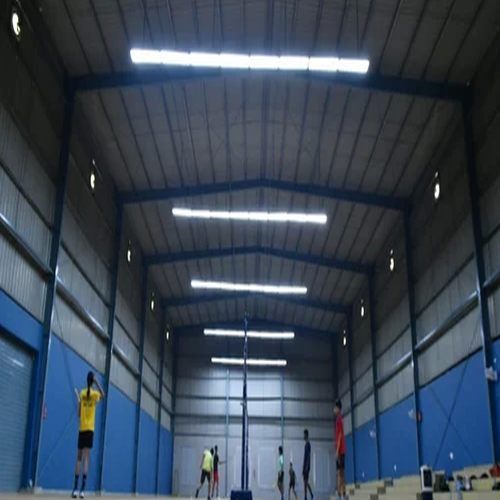

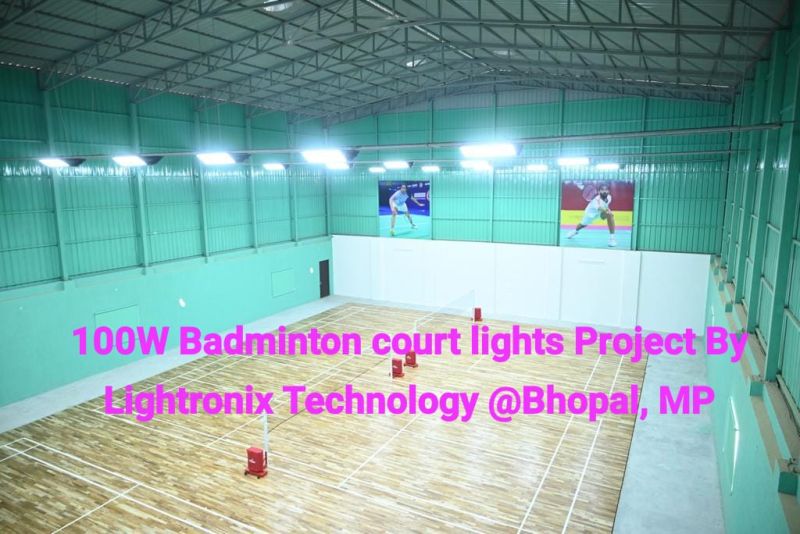

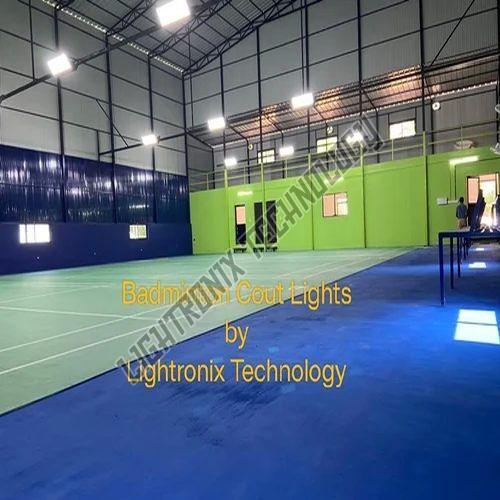

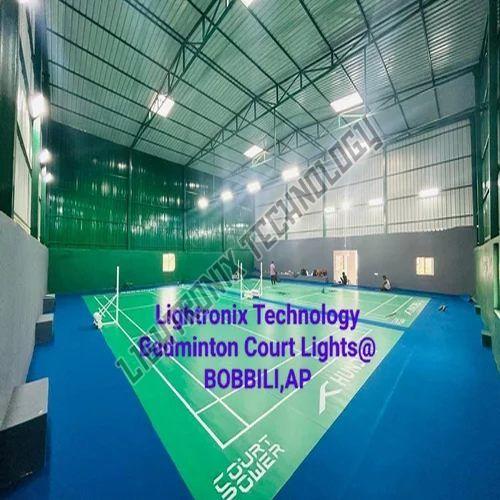

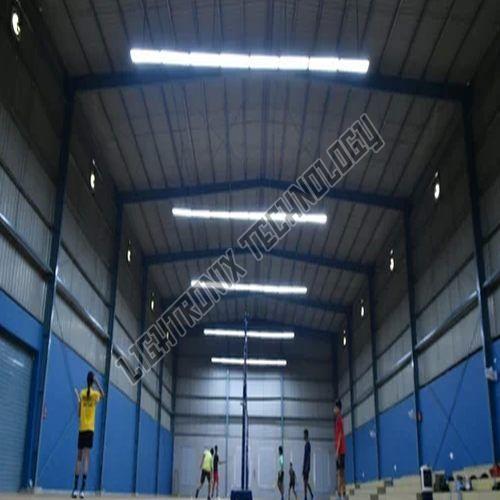

Leading Manufacturers, Exporters and Wholesaler of 100 Watt Badminton Court LED Light, 100 Watt Badminton Court Panel Light, 150 Watt 4x1 Feet Tennis Court LED Light, 150 Watt Badminton Court LED Light, Antiglare Badminton Court Light, Badminton & Tennis Court LED Light, Basket Ball Court LED Light, Cool White Squash Court Light, Football Stadium LED Flood Light, Glare Free Badminton Court LED Light, Indoor Badminton Court LED Light, Indoor Sport Ground Antiglare LED Light, Indoor Stadium Basket Ball LED Light, LED Linear High Bay Badminton Court Light, Lightronix Badminton Court Light, Lightronix LED Sports Court Light, Pickleball Court LED Light, Tennis and Squash Court Light and Tennis Court Lights from Gandhinagar.
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Shape | Rectangle |
| Lighting Color | Cool White |
| Type | LED |
| Wattage | 100 W |
| Warranty | 2 Year |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Lighting Type | LED |
| Shape | Rectangular |
| Lighting Color | Warm White, Cool White, Neutral White |
| Voltage | 220V |
| Warranty | 2 Year |
| Country of Origin | India |
| IP Rating | IP54 |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Warranty | 2 Years,2 YEARS |
| Light Type | LED |
| Voltage | 220-240V |
| Driven Type | Electric |
| Body Material | Aluminium Die,METAL |
| Condition | New |
| Type | ANTI GLARE LIGHT |
| Brand | LIGHTRONIX |
| Color | GREY |
| Size | 3X1 FEET |

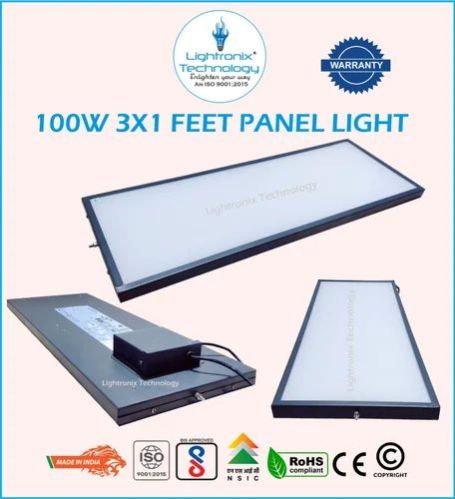

| Product Code | LT-100W-3X1 FEET PANEL |
| Port | GANDHINAGAR |
| Payment Terms | L/C, D/A, T/T, Other |
| Delivery Time | 2 DAYS |
| Packaging Details | 04 NOS BOX |
|
GENERAL INFORMATION |
|
|
Order Code |
LT-100WPANEL-3×1 |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 2835 LED 0.2W |
|
Number of LED |
500 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
120 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
3.2V/60mA |
|
LED Make |
Bridge lux |
|
Optical Lens |
NA |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
14000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
100 Watt |
|
Power Factor |
>0.95 |
|
THD |
<10% |
|
Driver Surge Protection |
4-6KV |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
774x266 mm ( 2 PCB of 390x266 mm) |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Metal body (20 gauge Thickness) |
|
Housing Color Type |
Anti-dust Off grey powder coating |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
5.980 Kg |
|
Luminaries Size |
830 X 310 X 30 mm3 (±5%) |
|
Diffuser Glass Size |
820mm X 295mm |
|
Mounting Device |
Clamp |
|
Mounting Style |
Wall mounting/ceiling/Hanging |
|
Glass Type |
Anti-glare diffuser glass (2 mm thickness) |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
IP Rating |
IP54 – Dust proof (Protection against Dust & Water Splashes) |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Shape | Rectangle |
| Voltage | 220 V |
| Type | LED |
| Warranty | 2 Year |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Warranty | 2 Yrs, 2 Years |
| Light Type | LED |
| Voltage | 220-240V |
| Driven Type | Electric |
| Body Material | Aluminium Die |
| Condition | New |
| Port | GANDHINAGAR |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Delivery Time | 1 DAY |
| Packaging Details | 04 NOS BOX |
|
GENERAL INFORMATION |
|
|
Order Code |
LT-100WPANEL-3×1 |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 2835 LED 0.2W |
|
Number of LED |
500 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
120 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
3.2V/60mA |
|
LED Make |
Bridge lux |
|
Optical Lens |
NA |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
14000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
100 Watt |
|
Power Factor |
>0.95 |
|
THD |
<10% |
|
Driver Surge Protection |
4-6KV |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
774x266 mm ( 2 PCB of 390x266 mm) |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Metal body (20 gauge Thickness) |
|
Housing Color Type |
Anti-dust Off grey powder coating |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
5.980 Kg |
|
Luminaries Size |
830 X 310 X 30 mm3 (±5%) |
|
Diffuser Glass Size |
820mm X 295mm |
|
Mounting Device |
Clamp |
|
Mounting Style |
Wall mounting/ceiling/Hanging |
|
Glass Type |
Anti-glare diffuser glass (2 mm thickness) |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
IP Rating |
IP54 – Dust proof (Protection against Dust & Water Splashes) |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Lighting Type | LED |

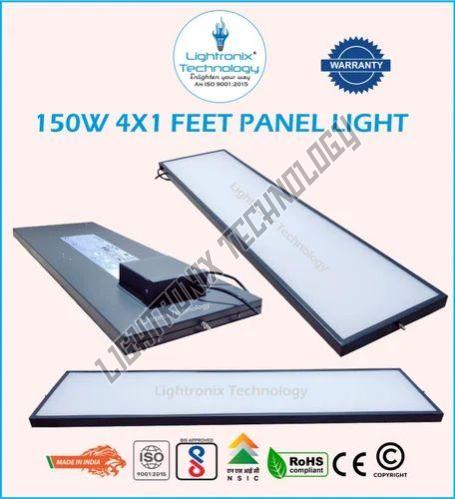

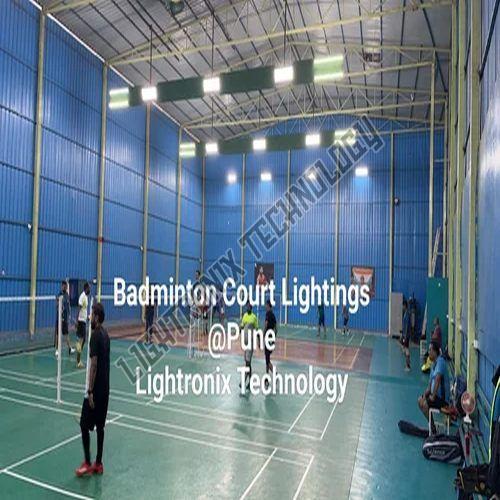

| Application | Badminton & Tennis Court |
| Type | LED |

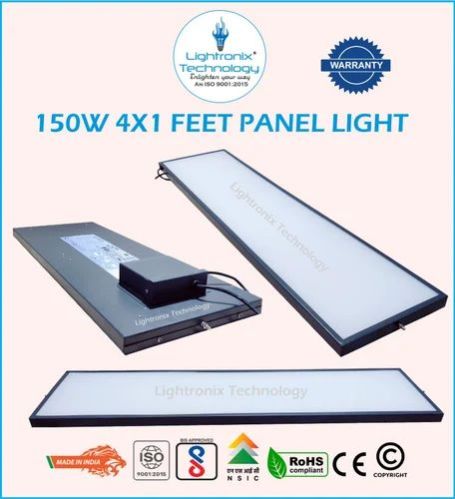

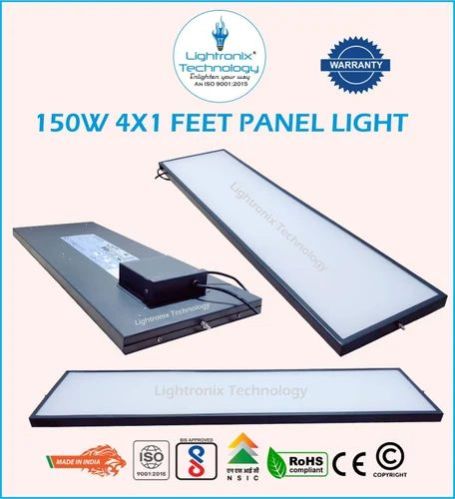

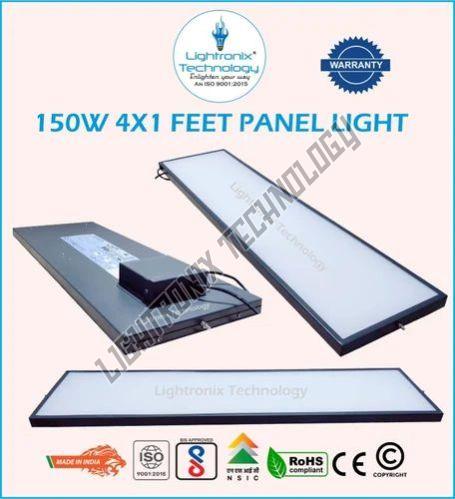

| Wattage | 150 W |
| Warranty | 2 Year |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Driven Type | Electric |
| Lighting Color | Warm White |
| Type | LED |
| Warranty | 2 Years |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Driven Type | Electric |
| Shape | Rectangular |
| Lighting Color | Cool-white |
| Light Type | LED |
| Warranty | 2 Years |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Aluminum Casting,ALUMINIUM |
| Brand Name | Lightronix,LIGHTRONIX |
| Housing Material | Aluminium Die Casting |
| Lighting Color | White,Warm White,Cool White |
| Warranty | 5years, 2years,2years |
| Country of Origin | India |
| IP Rating | IP65/IP66 |
| Lighting Type | LED |

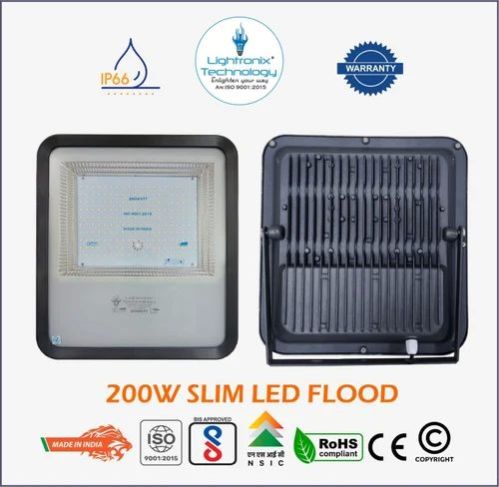

| Type | Led Flood Light |
| Color | GREY |

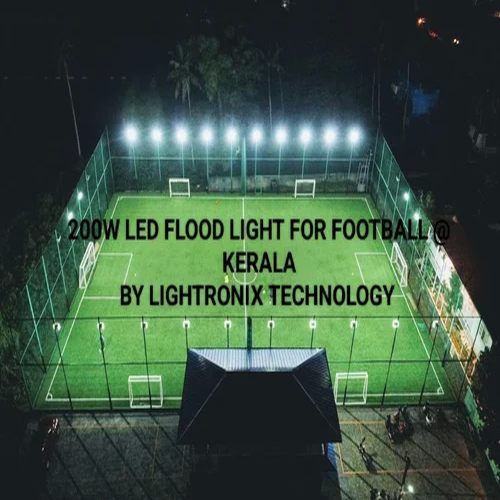

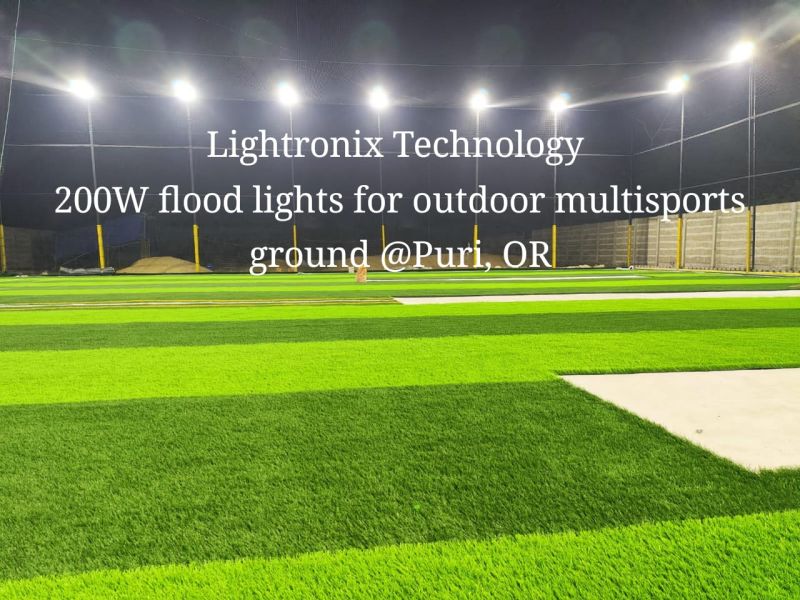

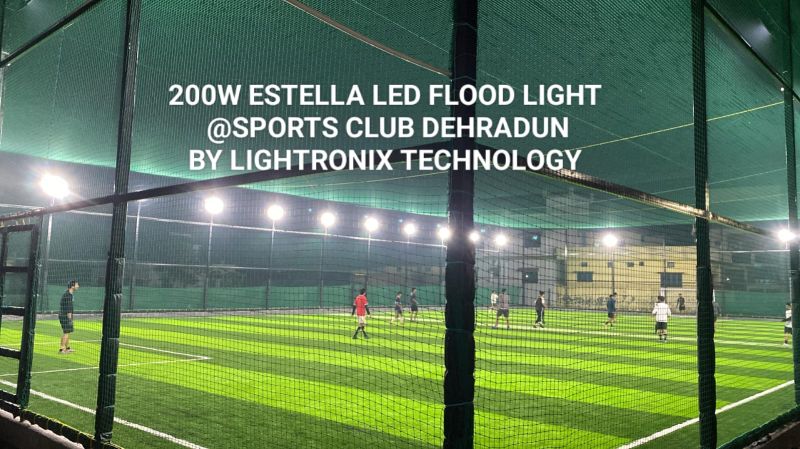

| Product Code | FOOTBALL STADIUM LIGHT |
| Port | GANDHINAGAR, GUJARAT |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 1 DAY |
| Packaging Details | 06 NOS |
|

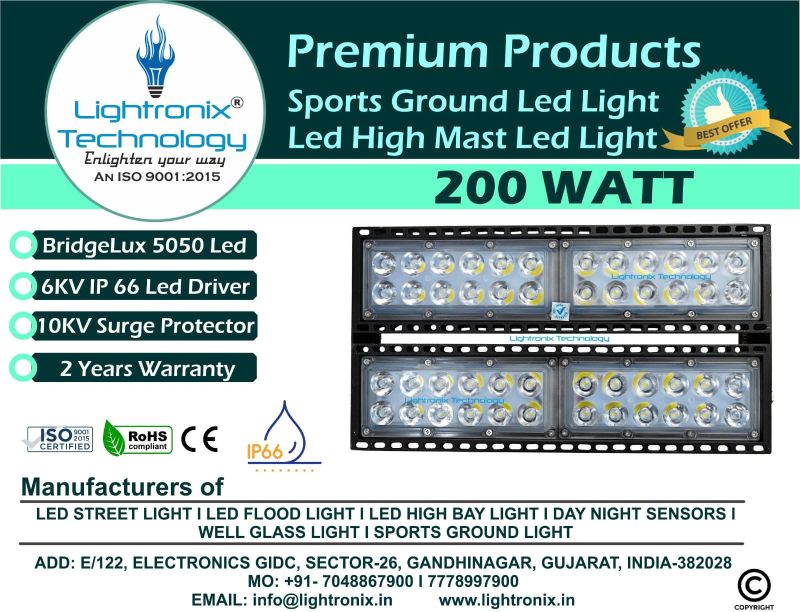

GENERAL INFORMATION |
|
|
Order Code |
LT-200WFL-SPORTS (200W TO 2000W AVAILABLE) |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 5050 LED |
|
Number of LED |
40 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
15,30,45,60 degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White |
|
Color Temperature |
6500K |
|
Led Voltage/Current |
6.2V/750mA |
|
LED Make |
Bridge lux |
|
Optical Lens |
15,30,45,60 degree Polycarbonate lens |
|
Luminous Efficiency |
170 Lm/W |
|
Total Lumens |
34000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
Vertical area Output |
>100ft |
|
Radius Area Output |
200-300ft |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
108-305VAC |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
200 Watt (200W TO 2000W AVAILABLE) |
|
Power Factor |
>0.97 |
|
THD |
<10% |
|
Driver Surge Protection |
6KV line-line, 10KV line-earth |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection (48 Hours) |
|
Under voltage Protection |
108VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
148x45mm – 04 PCB |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Aluminum Pressure Die Casting |
|
Housing Color Type |
Metal Powder Coated |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
3.57 Kg |
|
Luminaries Size |
390×210 ×100 mm3 |
|
Mounting Device |
Bracket |
|
Mounting Style |
Wall/Pole/Ceiling/Roof/Hanging |
|
Glass Type |
PC Lens cover |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
Gasket Type |
Silicone Rubber Gasket |
|
IP Rating |
IP66 |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Lighting Color | Cool White |
| Type | LED |
| Warranty | 2 Year |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Lighting Type | LED |
| Shape | Rectangular |
| Lighting Color | Cool White |
| Voltage | 220V |
| Type | LED |
| Warranty | 2 Year |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Body Material | Aluminium Die, Aluminum,METAL |
| Driven Type | Electric |
| Condition | New |
| Power | 100W |
| Certification | ISO 9001:2008 Certified |
| Voltage | 220-240V, 220V |
| Packaging Type | Corrugated Boxes |
| Warranty | 2 Year,2 YEARS |
| Country of Origin | India |
| Brand Name | Lightronix |
| Shape | Rectangular |
| Light Type | LED |
| Color | GREY |
| Product Code | INDOOR LIGHT ANTIGLARE |
| Port | GANDHINAGAR |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 1 DAY |
| Packaging Details | 04 NOS BOX |
|
GENERAL INFORMATION |
|
|
Order Code |
LT-100WPANEL-3×1 |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 2835 LED 0.2W |
|
Number of LED |
500 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
120 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
3.2V/60mA |
|
LED Make |
Bridge lux |
|
Optical Lens |
NA |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
14000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
100 Watt |
|
Power Factor |
>0.95 |
|
THD |
<10% |
|
Driver Surge Protection |
4-6KV |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
774x266 mm ( 2 PCB of 390x266 mm) |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Metal body (20 gauge Thickness) |
|
Housing Color Type |
Anti-dust Off grey powder coating |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
5.980 Kg |
|
Luminaries Size |
830 X 310 X 30 mm3 (±5%) |
|
Diffuser Glass Size |
820mm X 295mm |
|
Mounting Device |
Clamp |
|
Mounting Style |
Wall mounting/ceiling/Hanging |
|
Glass Type |
Anti-glare diffuser glass (2 mm thickness) |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
IP Rating |
IP54 – Dust proof (Protection against Dust & Water Splashes) |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
| Business Type | Manufacturer, Exporter, Supplier |
| Body Material | Aluminum,METAL |
| Driven Type | Electric |
| Condition | New |
| Power | 100 |
| Certification | ISO 9001:2008 Certified, CE,ROHS,ISO |
| Voltage | 220-240V |
| Packaging Type | Corrugated Boxes |
| Light Type | LED |
| Type | LED |
| Warranty | 2 Years,2 YEARS |
| Country of Origin | India |
| Brand Name | Lightronix |
| Power Supply | 220V |
| Brand | LIGHTRONIX |
| Color | GREY |
| Product Code | TENNIS COURT LED LIGHT |
| Port | GANDHINAGAR |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 1 DAY |
| Packaging Details | 04 NOS BOX |
|
GENERAL INFORMATION |
|
|
Order Code |
LT-100WPANEL-3×1 |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 2835 LED 0.2W |
|
Number of LED |
500 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
120 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
3.2V/60mA |
|
LED Make |
Bridge lux |
|
Optical Lens |
NA |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
14000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
100 Watt |
|
Power Factor |
>0.95 |
|
THD |
<10% |
|
Driver Surge Protection |
4-6KV |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
774x266 mm ( 2 PCB of 390x266 mm) |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Metal body (20 gauge Thickness) |
|
Housing Color Type |
Anti-dust Off grey powder coating |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
5.980 Kg |
|
Luminaries Size |
830 X 310 X 30 mm3 (±5%) |
|
Diffuser Glass Size |
820mm X 295mm |
|
Mounting Device |
Clamp |
|
Mounting Style |
Wall mounting/ceiling/Hanging |
|
Glass Type |
Anti-glare diffuser glass (2 mm thickness) |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
IP Rating |
IP54 – Dust proof (Protection against Dust & Water Splashes) |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Beam Angle | 120 Degree |
| Weight | 8.20Kg (±5%) |
| Brand Name | Lightronix |
| Surge Protection | 4KV/6KV (10KV Extra as per requirement) |
| Luminous Flux | 140Lm/W |
| Led Make | Bridgelux |
| Number of LEDs | 750 Led of 0.2W |
| Dimensions | 1215mm X 310mm X 55mm (±5%) |
| LED Working Voltage | +3.2 VDC |
| Input Voltage | 85 – 300 VAC(Auto cut off above 310V)(Protection up to 440 V),85 – 300 VAC(Auto Cut Off Above 310V)(Protection Up To 440 V) |

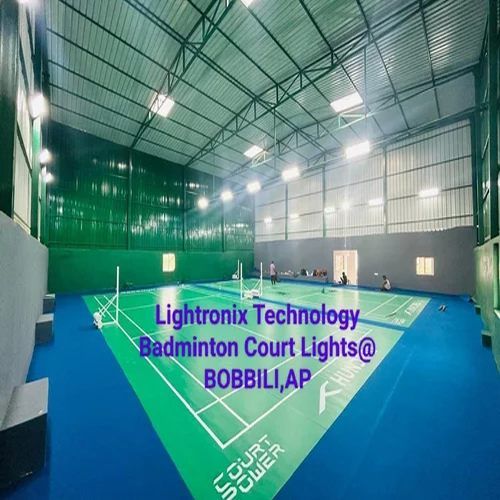

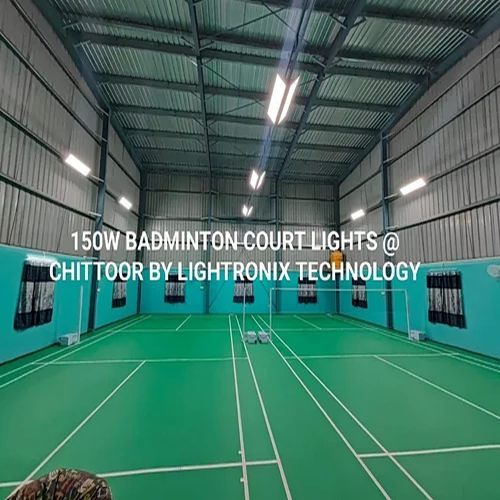

| Product Code | LED Linear High Bay Badminton Court Ligh |
| Port | GANDHINAGAR |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 1 DAY |
| Packaging Details | 04 NOS BOX |
|
GENERAL INFORMATION |
|
|
Order Code |

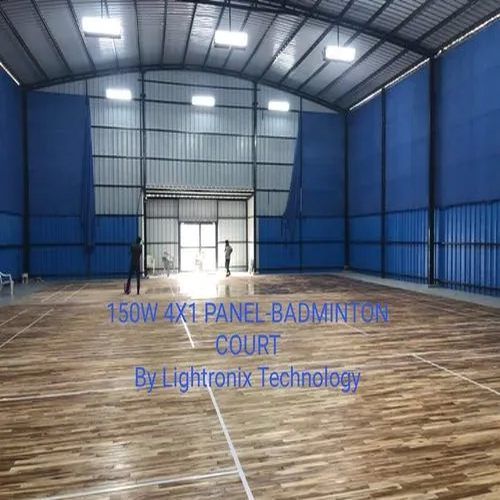

LT-150WPANEL-4×1 |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 2835 LED 0.2W |
|
Number of LED |
750 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
120 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
3.2V/60mA |
|
LED Make |
Bridge lux |
|
Optical Lens |
NA |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
21000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
150 Watt |
|
Power Factor |
>0.95 |
|
THD |
<10% |
|
Driver Surge Protection |
4-6KV |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
1161x266 mm ( 3 PCB of 390x266 mm) |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Metal body (20 gauge Thickness) |
|
Housing Color Type |
Anti-dust Off grey powder coating |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
8.660 Kg |
|
Luminaries Size |
1219 X 310 X 30mm3 (±5%) |
|
Diffuser Glass Size |
1215 X 295mm |
|
Mounting Device |
Clamp |
|
Mounting Style |
Wall mounting/ceiling/Hanging |
|
Glass Type |
Anti-glare diffuser glass (2 mm thickness) |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
IP Rating |
IP54 – Dust proof (Protection against Dust & Water Splashes) |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
| Business Type | Manufacturer, Exporter, Supplier |
| Body Material | Aluminium Die |
| Driven Type | Electric |
| Voltage | 220-240V |
| Light Type | LED |
| Warranty | 2 Years |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Type | LED |
| Warranty | 2 Year |
| Country of Origin | India |
| IP Rating | IP65 |
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Body Material | Aluminum |
| Shape | Rectangle |
| Lighting Color | Warm White, Cool White |
| Type | LED |
| Warranty | 2 Year |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Body Material | Aluminium Die |
| Driven Type | Electric |
| Voltage | 220-240V |
| Light Type | LED |
| Warranty | 2 Years |
| Country of Origin | India |
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Warranty | 2 Yrs, 2 Years |
| Light Type | LED |
| Voltage | 220-240V |
| Driven Type | Electric |
| Body Material | Aluminium Die |
| Condition | New |
| Type | Tennis Court Lights |
| color Temperature | 2700-6500K(As Per Order) |
| Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| IP Rating | IP54 – Dust proof (Protection against Dust & Water Splashes) |
| Product Code | LT-100WPANEL-3*1 |
| Port | GANDHINAGAR, GUJARAT |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, Other |
| Delivery Time | 1 day |
| Packaging Details | 04 NOS BOX |
GENERAL INFORMATION
Order CodeLT-100WPANEL-3×1
MakeLightronix Technology
Country of OriginINDIA
Lighting Source & TypeSMD 2835 LED 0.2W
Number of LED 500
OPTICAL PARAMETERS
Led Beam Angle120 Degree
CRI (Color Rendering Index)>80
LED Life Span>60000 Hours
ColorWhite/Warm White/Cool White (As Per Order)
Color Temperature2700-6500K(As Per Order)
Led Voltage/Current3.2V/60mA
LED MakeBridge lux
Optical LensNA
Luminous Efficiency140 Lm/W
Total Lumens14000(±5%)
Optical Efficiency>93%
Thermal Efficiency>90%
ELECTRICAL PARAMETERS
Wide Input Voltage Range90-310VAC(With Auto Cutoff)
Operating Frequency50/60HZ
Power Consumption100 Watt
Power Factor>0.95
THD<10%
Driver Surge Protection4-6KV
External Surge Protection10KV (As per Requirement)
Control GearConstant current LED Driver
Operating Temperature-40 to 75°C
Max. Case Temperature+90°C
Working Humidity20~95% RH non-condensing
Driver thermal ProtectionYes
Electrical Efficiency>90%
Supply PhaseSingle Phase Supply
Over voltage Protection440VAC Protection
Under voltage Protection90VAC
Auto cutoff VoltageLower Side<90VAC & Higher Side>310VAC
PCB INFORMATION
PCB Thickness1.6mm(±5% Tolerance)
PCB MaterialPure Aluminum-Copper
Copper Layer ThicknessStandard 0.35 Micron
Copper Conductivity>1 Watt
PCB Size 774x266 mm ( 2 PCB of 390x266 mm)
MECHANICAL PARAMETERS
Housing MaterialMetal body (20 gauge Thickness)
Housing Color TypeAnti-dust Off grey powder coating
Housing ShapeRectangle
Total Luminaries Weight5.980 Kg
Luminaries Size830 X 310 X 30 mm3 (±5%)
Diffuser Glass Size820mm X 295mm
Mounting Device Clamp
Mounting StyleWall mounting/ceiling/Hanging
Glass TypeAnti-glare diffuser glass (2 mm thickness)
Cable Entry OptionPG7 Cable Gland with Rubber Washer
Screw TypeStainless Steel Screw
IP RatingIP54 – Dust proof (Protection against Dust & Water Splashes)
Impact RatingIK08/IK10
Marking TypeLaser Marking/Engraving
