info@lightronix.in - GST NO. : 24AAGFL8957P1ZG
- Send Email
| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | Lightronix |
| Material | Metal & Plastic |
| Warranty | 1year |
| Click to view more | |
Product Details
Country of Origin
India
Frequency
50 Hz
Rate Load Current
10 A
Maximum Operating Supply Voltage
305 VAC
Specifications
| Output Type | Analog |
| Power Source | 220-240 V AC |
| Power Frequency | 50 Hz |
| Rate Load Current | 10 A |
| Maximum Operating Supply Voltage | 305 VAC |
| Mounting Type | Clamp |
| Part Number | LT-Sensor |
| Brand | Lightronix Technology |
| Color | Black |
| Material | Hybrid Polymer |
| Usage/Application | Outdoor Street |
| Model | LT-Sensor |
| Working Temperature | -20 to +50 DegC |
| Size/Dimension | 60X38X25 mm3 (+-2mm Tolerance) |
| IP Rating | IP66 |
| Number of wires | 3 |
| Frequency | 50 Hz |
| Weight | 90 gm (IP) (+-10gm Tolerance) |
| Supply Voltage | 305 VAC |
| Output Current | 10A |
| Model Name/Number | LT-Sensor |
| Type | Photodiodes |
| Dimension | 60X38X25 mm3 (2mm Tolerance) |
| Weight | 90 gm (IP) (10gm Tolerance) |
| Input Voltage | 100-305 VAC |
| Operating Frequency | 50 Hz |
| External Load capacity | Up to 300 Watt |
| Output Voltage/Current | 240VAC / 10 A |
| Off load power consumption | 0.54 W |
| Surge protection | 4 KV Protection |
| Ambient Light | 6 lux to 40 lux ( 5% tolerance) lux level for switching on from 6 to 14 LUX lux level for switching off from 20 to 35 LUX |
| Availability | With enclosure, With IP66 Coating With Open Circuit |
| Potting Material | Hybrid polymer (Thermal conductivity 0.7) |

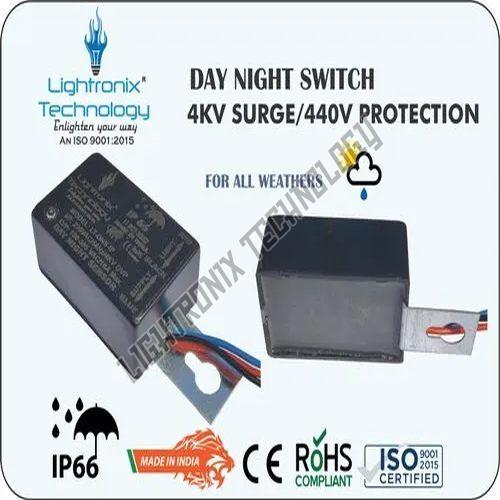

Looking for "Photocell Day Night Street Light Sensor" ?
