| Business Type | Manufacturer, Exporter, Supplier |
| Brand Name | LIGHTRONIX |
| Material | Aluminum Casting |
| Housing Material | Aluminum Casting |
| Click to view more | |
Product Details
Lighting Type

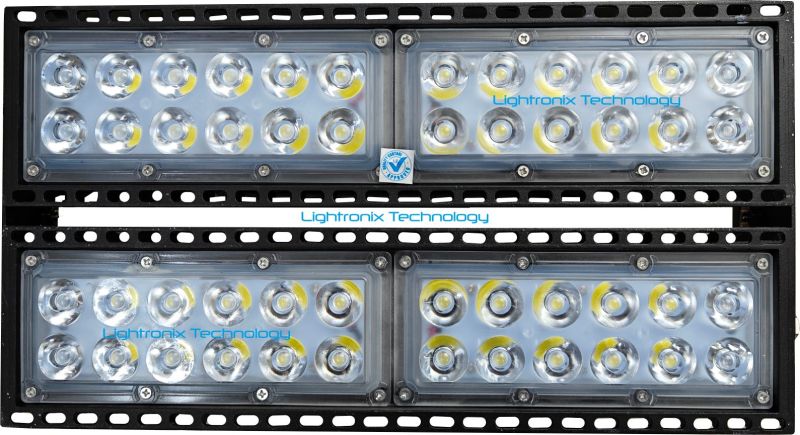

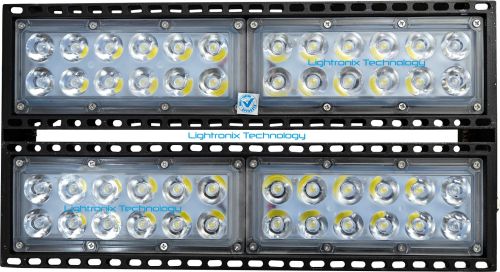

Stadium LED Light
Material alluminium body
Aluminum Casting
Color
White
Power
Electric
Power Supply
Ac
Feature
Stable Performance
Country of Origin
India
Color Temperature
6500K
LED Life Span
>60000 Hours
Led Voltage/Current
6.2V/750mA
LED Make
Bridge Lux
Thermal Efficiency
>90%
Vertical area Output
>100ft
Wide Input Voltage Range
108-305VAC
Operating Frequency
50/60HZ
Power Consumption
200 Watt
Over voltage Protection
440VAC Protection (48 Hours)
Under voltage Protection
108VAC
Auto cutoff Voltage
Lower Side310VAC
Product Code
LT-200WFL-SPORTS
Delivery Time
1
Specifications
| OPTICAL PARAMETERS | |
| LED Life Span | >60000 Hours |
| Color | White |
| Color Temperature | 6500K |
| Led Voltage/Current | 6.2V/750mA |
| LED Make | Bridge lux |
| Optical Lens | 15,30,45,60 degree Polycarbonate lens |
| Luminous Efficiency | 170 Lm/W |
| Total Lumens | 34000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| Vertical area Output | >100ft |
| Radius Area Output | 200-300ft |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 108-305VAC |
| Operating Frequency | 50/60HZ |
| Power Consumption | 200 Watt (200W TO 2000W AVAILABLE) |
| Power Factor | >0.97 |
| THD | 90.00% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection (48 Hours) |
| Under voltage Protection | 108VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 148x45mm – 04 PCB |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 3.57 Kg |
| Luminaries Size | 390×210 ×100 mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | PC Lens cover |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
