Product Details
|
GENERAL INFORMATION |
|
|
Order Code |

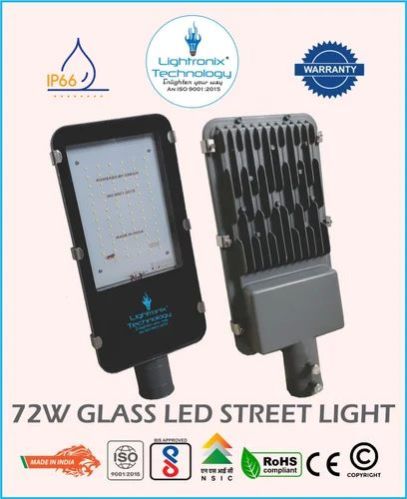

LT-72WSL (GLASS MODEL) |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 3030 LED |
|
Number of LED |
72 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
120 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
6.2V/150mA |
|
LED Make |
Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
|
Optical Lens |
NA |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
10080(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
72 Watt |
|
Power Factor |
>0.95 |
|
THD |
<10% |
|
Driver Surge Protection |
4-6KV |
|
External Surge Protection |
10KV (As per Requirement) |
|
Control Gear |
Constant current LED Driver |
|
Operating Temperature |
-40 to 75°C |
|
Max. Case Temperature |
+90°C |
|
Working Humidity |
20~95% RH non-condensing |
|
Driver thermal Protection |
Yes |
|
Electrical Efficiency |
>90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side<90VAC & Higher Side>310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
220x150 mm |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Aluminum Pressure Die Casting |
|
Housing Color Type |
Metal Powder Coated |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
2.10 Kg |
|
Luminaries Size |
415 ×180 × 52 mm3 |
|
Pole Dia Entry |
50 mm |
|
Mounting Device |
Clamp |
|
Mounting Style |
Pole/Wall |
|
Glass Type |
4mm Toughen Glass |
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
Gasket Type |
Silicone Rubber Gasket |
|
IP Rating |
IP65/IP66 |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
|
PRODUCT BENEFITs |
|
- Long Life/Heavy duty/Rugged & Dustproof - Premium quality Led Driver with Highest Power Factor - Save Up to 70% Energy - Single shot no-load latching protection/output short-circuit protected with auto-recovery - Under & Over voltage protection with Output short circuit protection - Auto-recovering thermal shut down with large hysteresis protects Both components And printed circuit board - No damage during brown-out conditions |
Specifications
| Body Material | Aluminium Die Casting |
| Certification | ISO,CE,RoHS,BIS,NSIC |
| Brand | Lightronix Technology |
| Input Voltage | 100-305 VAC |
| Model Name/Number | LT-72WSL |
| IP Rating | IP65/IP66 |
| Frequency | 50 Hz |
| Lumens | 10800 lm |
| Color Temperature | 2700-6500 K |
| Luminous Flux | 140Lm/W |
| Dimension | 198 x419 mm |
| Warranty | 2 Years Warranty |
| Color Temperature Range | 2700-6500K |
| Surge Protection | 4KV/6KV(10KV Extra as per your requirment) |
| Lifetime | >50000 Hrs |
| Nominal Voltage | 100-305 VAC |
| Operating Voltage | 100-305 VAC |
| Working Lifetime Hour | > 50000 Hours |
| Shipment Mode | Transport |
| Driver Efficiency | >90% |
| THD | <10% |
| Product Code | LT-72WSL |
| Lifespan | >50000 Hrs |
| Life Working | >50000 Hrs |
| Mounting Type | Pole Mounted |
| Pole Entry Dia | 50 mm |
| Protection | 4 kV/6 kV(Extra 10 kV as per requirement) |
| CRI | 80 |
| Total Harmonic Distortion | < 10 % |
| Efficiency | >90% |
| Weight | 1.992 Kg |
| Led Quantity | 72 |
| Install Style | Pole Mounted |
| Acceptable Payment Mode | Online |
| Series | Glass model |
| Usage/Application | Outdoor,Grampanchayat,Society,Highway,Street |
| Pole Die | 50 mm |
| Dispatch Time | As per order quantity |
| Return Applicable | Never |
| Beam Spread | 120 Degree |
| Led Viewing Angle | 120 Degree |
