| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Power Requirement | 300W |
| Color Temperature | 2700-6500k(as Per Order) |
| Click to view more | |
Product Details
Power Consumption
300 Watt
Led Life Span
>60000 Hours
Luminous Efficiency
140 Lm/w
Total Lumens
42000(±5%)
supply phase
single phase supply
Over Voltage Protection
440VAC Protection
Product Code
LT-300WFL-GM
Specifications
| Optical Parameters | |
| led beam angle | 120 degree |
| cri (color rendering index) | >80 |
| led life span | >60000 hours |
| color | white/warm white/cool white (as per order) |
| color temperature | 2700-6500k(as per order) |
| led voltage/current | 6.2v/150ma |
| led make | seoul/bridge lux/cree/nichia/osram (as per requirement) |
| optical lens | na |
| luminous efficiency | 140 lm/w |
| total lumens | 42000(±5%) |
| optical efficiency | >93% |
| thermal efficiency | >90% |
| Electrical Parameters | |
| wide input voltage range | 90-310vac(with auto cutoff) |
| operating frequency | 50/60hz |
| power consumption | 300 watt |
| power factor | >0.95 |
| thd | 90.00% |
| supply phase | single phase supply |
| over voltage protection | 440vac protection |
| under voltage protection | 90vac |
| auto cutoff voltage | lower side310vac |
| Pcb Information | |
| pcb thickness | 1.6mm(±5% tolerance) |
| pcb material | pure aluminum-copper |
| copper layer thickness | standard 0.35 micron |
| copper conductivity | >1 watt |
| pcb size | 267x200 mm |
| Mechanical Parameters | |
| housing material | aluminum pressure die casting |
| housing color type | metal powder coated |
| housing shape | rectangle |
| total luminaries weight | 4.020 kg |
| luminaries size | 385 × 375 × 70 mm3 |
| mounting device | bracket |
| mounting style | wall/pole/ceiling/roof/hanging |
| glass type | 4mm toughen glass |
| glass size | 375x365 mm² |
| cable entry option | pg7 cable gland with rubber washer |
| screw type | stainless steel screw |
| gasket type | silicone rubber gasket |
| ip rating | ip65/ip66 |
| impact rating | ik08/ik10 |
| marking type | laser marking/engraving |

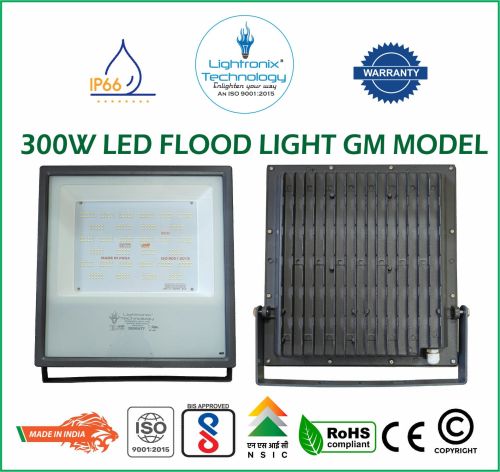

Looking for "300 Watt GM LED Flood Light" ?
