| Business Type | Manufacturer, Exporter, Supplier |
| Lighting Colors | WHITE |
| Country of Origin | India |
| Led Beam Angle | 120 Degree |
| Click to view more | |
Product Details
|
GENERAL INFORMATION |
|
|
Order Code |

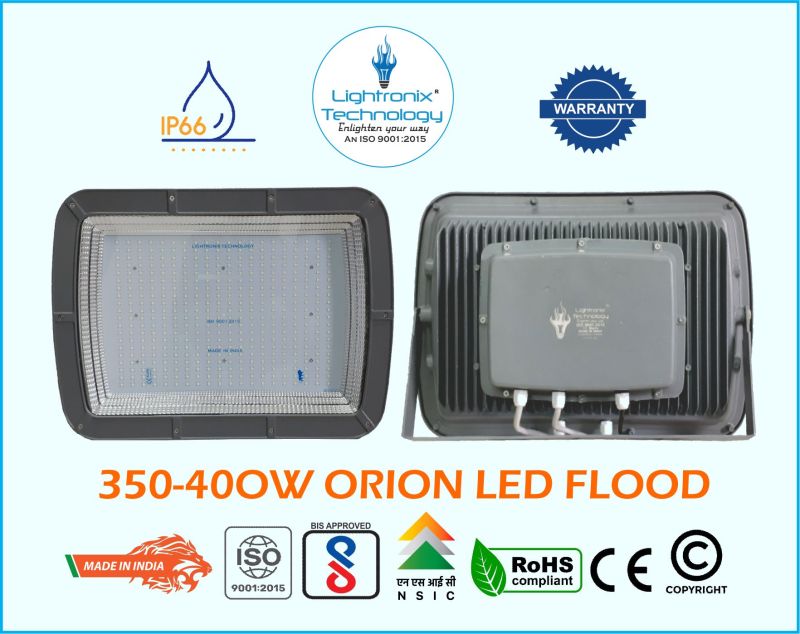

LT-350WFL(ORION MODEL) |
|
Make |
Lightronix Technology |
|
Country of Origin |
INDIA |
|
Lighting Source & Type |
SMD 3030 LED |
|
Number of LED |
350 |
|
OPTICAL PARAMETERS |
|
|
Led Beam Angle |
120 Degree |
|
CRI (Color Rendering Index) |
>80 |
|
LED Life Span |
>60000 Hours |
|
Color |
White/Warm White/Cool White (As Per Order) |
|
Color Temperature |
2700-6500K(As Per Order) |
|
Led Voltage/Current |
6.2V/150mA |
|
LED Make |
Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
|
Optical Lens |
NA |
|
Luminous Efficiency |
140 Lm/W |
|
Total Lumens |
49000(±5%) |
|
Optical Efficiency |
>93% |
|
Thermal Efficiency |
>90% |
|
ELECTRICAL PARAMETERS |
|
|
Wide Input Voltage Range |
90-310VAC(With Auto Cutoff) |
|
Operating Frequency |
50/60HZ |
|
Power Consumption |
350 Watt |
|
Power Factor |
>0.95 |
|
THD |
90% |
|
Supply Phase |
Single Phase Supply |
|
Over voltage Protection |
440VAC Protection |
|
Under voltage Protection |
90VAC |
|
Auto cutoff Voltage |
Lower Side310VAC |
|
PCB INFORMATION |
|
|
PCB Thickness |
1.6mm(±5% Tolerance) |
|
PCB Material |
Pure Aluminum-Copper |
|
Copper Layer Thickness |
Standard 0.35 Micron |
|
Copper Conductivity |
>1 Watt |
|
PCB Size |
250X395 mm |
|
MECHANICAL PARAMETERS |
|
|
Housing Material |
Aluminum Pressure Die Casting |
|
Housing Color Type |
Metal Powder Coated |
|
Housing Shape |
Rectangle |
|
Total Luminaries Weight |
10 Kg |
|
Luminaries Size |
495 × 336 × 140mm3 |
|
Mounting Device |
Bracket |
|
Mounting Style |
Wall/Pole/Ceiling/Roof/Hanging |
|
Glass Type |
4mm Toughen Glass |
|
Glass size |
|
|
Cable Entry Option |
PG7 Cable Gland with Rubber Washer |
|
Screw Type |
Stainless Steel Screw |
|
Gasket Type |
Silicone Rubber Gasket |
|
IP Rating |
IP65/IP66 |
|
Impact Rating |
IK08/IK10 |
|
Marking Type |
Laser Marking/Engraving |
Specifications
| OPTICAL PARAMETERS | |
| Led Beam Angle | 120 Degree |
| CRI (Color Rendering Index) | >80 |
| LED Life Span | >60000 Hours |
| Color | White/Warm White/Cool White (As Per Order) |
| Color Temperature | 2700-6500K(As Per Order) |
| Led Voltage/Current | 6.2V/150mA |
| LED Make | Seoul/Bridge lux/Cree/Nichia/Osram (As per Requirement) |
| Optical Lens | NA |
| Luminous Efficiency | 140 Lm/W |
| Total Lumens | 49000(±5%) |
| Optical Efficiency | >93% |
| Thermal Efficiency | >90% |
| ELECTRICAL PARAMETERS | |
| Wide Input Voltage Range | 90-310VAC(With Auto Cutoff) |
| Operating Frequency | 50/60HZ |
| Power Consumption | 350 Watt |
| Power Factor | >0.95 |
| THD | 90.00% |
| Supply Phase | Single Phase Supply |
| Over voltage Protection | 440VAC Protection |
| Under voltage Protection | 90VAC |
| Auto cutoff Voltage | Lower Side310VAC |
| PCB INFORMATION | |
| PCB Thickness | 1.6mm(±5% Tolerance) |
| PCB Material | Pure Aluminum-Copper |
| Copper Layer Thickness | Standard 0.35 Micron |
| Copper Conductivity | >1 Watt |
| PCB Size | 250X395 mm |
| MECHANICAL PARAMETERS | |
| Housing Material | Aluminum Pressure Die Casting |
| Housing Color Type | Metal Powder Coated |
| Housing Shape | Rectangle |
| Total Luminaries Weight | 10 Kg |
| Luminaries Size | 495 × 336 × 140mm3 |
| Mounting Device | Bracket |
| Mounting Style | Wall/Pole/Ceiling/Roof/Hanging |
| Glass Type | 4mm Toughen Glass |
| Glass size | |
| Cable Entry Option | PG7 Cable Gland with Rubber Washer |
| Screw Type | Stainless Steel Screw |
| Gasket Type | Silicone Rubber Gasket |
| IP Rating | IP65/IP66 |
| Impact Rating | IK08/IK10 |
| Marking Type | Laser Marking/Engraving |
